Arch Class Reference

Delegating implementation of architecture dependent interfaces. More...

#include <Arch.h>

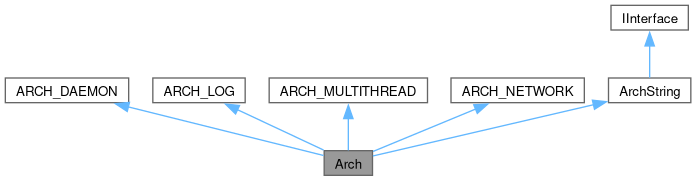

Inheritance diagram for Arch:

Collaboration diagram for Arch:

Public Member Functions
	Arch ()
	Arch (Arch *arch)
	~Arch () override=default
void	init () override
	Call init on other arch classes.
Public Member Functions inherited from ArchString
	ArchString ()=default
	ArchString (const ArchString &)=delete
	ArchString (ArchString &&)=delete
	~ArchString () override=default
ArchString &	operator= (const ArchString &)=delete
ArchString &	operator= (ArchString &&)=delete
int	convStringMBToWC (wchar_t *, const char *, uint32_t n, bool *errors) const
	Convert multibyte string to wide character string.
int	convStringWCToMB (char *, const wchar_t *, uint32_t n, bool *errors) const
	Convert wide character string to multibyte string.
EWideCharEncoding	getWideCharEncoding () const
	Return the architecture's native wide character encoding.
Public Member Functions inherited from IInterface
virtual	~IInterface ()=default
	Interface destructor does nothing.

Static Public Member Functions
static Arch *	getInstance ()
	Return the singleton instance.
static void	setInstance (Arch *s)
static void	sleep (double timeout)
	blocks calling thread for timout seconds
static double	time ()
	time

Additional Inherited Members
Public Types inherited from ArchString
enum class	EWideCharEncoding : uint8_t {   kUCS2 , kUCS4 , kUTF16 , kUTF32 ,   kPlatformDetermined }
	Wide character encodings. More...

Detailed Description

Delegating implementation of architecture dependent interfaces.

This class is a centralized interface to all architecture dependent interface implementations (except miscellaneous functions). It instantiates an implementation of each interface and delegates calls to each method to those implementations. Clients should use the ARCH macro to access this object. Clients must also instantiate exactly one of these objects before attempting to call any method, typically at the beginning of main().

Constructor & Destructor Documentation

Arch() [1/2]

Arch::Arch

(

)

Arch() [2/2]

Arch::Arch ( Arch * arch )

explicit

~Arch()

Arch::~Arch ( )

overridedefault

Member Function Documentation

getInstance()

Arch * Arch::getInstance ( )

static

Return the singleton instance.

The client must have instantiated exactly once Arch object before calling this function.

init()

void Arch::init ( )

override

Call init on other arch classes.

Some arch classes depend on others to exist first. When init is called these classes will have ARCH available for use.

setInstance()

void Arch::setInstance ( Arch * s )

inlinestatic

sleep()

void Arch::sleep ( double timeout )

static

blocks calling thread for timout seconds

Parameters

timeout

- blocking time in seconds. if < 0 not blocked if == 0 then caller yields the CPU

time()

double Arch::time ( )

static

time

Returns

Returns the number of seconds since some arbitrary starting time. This should return as high a precision as reasonable.

---

The documentation for this class was generated from the following files:

• src/lib/arch/Arch.h
• src/lib/arch/Arch.cpp
