Core key state. More...

#include <KeyState.h>

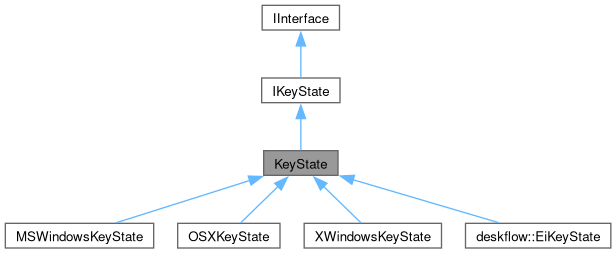

Inheritance diagram for KeyState:

[legend]

Collaboration diagram for KeyState:

[legend]

Classes
struct	AddActiveModifierContext

Public Member Functions
	KeyState (IEventQueue *events, std::vector< std::string > layouts, bool isLangSyncEnabled)
	KeyState (IEventQueue *events, deskflow::KeyMap &keyMap, std::vector< std::string > layouts, bool isLangSyncEnabled)
	~KeyState () override
manipulators
virtual void	onKey (KeyButton button, bool down, KeyModifierMask newState)
	Handle key event.
virtual void	sendKeyEvent (void *target, bool press, bool isAutoRepeat, KeyID key, KeyModifierMask mask, int32_t count, KeyButton button)
	Post a key event.
Public Member Functions inherited from IKeyState
	IKeyState (const IEventQueue *events)
Public Member Functions inherited from IInterface
virtual	~IInterface ()=default
	Interface destructor does nothing.

Protected Member Functions
protected manipulators
virtual void	getKeyMap (deskflow::KeyMap &keyMap)=0
	Get the keyboard map.
virtual void	fakeKey (const Keystroke &keystroke)=0
	Fake a key event.
virtual KeyModifierMask &	getActiveModifiersRValue ()
	Get the active modifiers.

accessors
using	Keystroke = deskflow::KeyMap::Keystroke
void	updateKeyMap (deskflow::KeyMap *existing)
void	updateKeyMap () override
	Update the keyboard map.
void	updateKeyState () override
	Update the key state.
void	setHalfDuplexMask (KeyModifierMask) override
	Set half-duplex mask.
void	fakeKeyDown (KeyID id, KeyModifierMask mask, KeyButton button, const std::string &lang) override
	Fake a key press.
bool	fakeKeyRepeat (KeyID id, KeyModifierMask mask, int32_t count, KeyButton button, const std::string &lang) override
	Fake a key repeat.
bool	fakeKeyUp (KeyButton button) override
	Fake a key release.
void	fakeAllKeysUp () override
	Fake key releases for all fake pressed keys.
bool	fakeMediaKey (KeyID id) override
	Fake a media key.
bool	isKeyDown (KeyButton) const override
	Test if key is pressed.
KeyModifierMask	getActiveModifiers () const override
	Get the active modifiers.
bool	fakeCtrlAltDel () override=0
	Fake ctrl+alt+del.
KeyModifierMask	pollActiveModifiers () const override=0
	Get the active modifiers from OS.
int32_t	pollActiveGroup () const override=0
	Get the active keyboard layout from OS.
void	pollPressedKeys (KeyButtonSet &pressedKeys) const override=0
	Get the keys currently pressed from OS.
int32_t	getKeyState (KeyButton keyButton) const

protected accessors
int32_t	getEffectiveGroup (int32_t group, int32_t offset) const
	Compute a group number.
virtual bool	isIgnoredKey (KeyID key, KeyModifierMask mask) const
	Check if key is ignored.
KeyButton	getButton (KeyID id, int32_t group) const
	Get button for a KeyID.

Additional Inherited Members
Public Types inherited from IKeyState
using	KeyButtonSet = std::set<KeyButton>
Static Public Attributes inherited from IKeyState
static const auto	s_numButtons = 0x200

Detailed Description

Core key state.

This class provides key state services. Subclasses must implement a few platform specific methods.

Member Typedef Documentation

◆ Keystroke

using KeyState::Keystroke = deskflow::KeyMap::Keystroke

protected

Constructor & Destructor Documentation

◆ KeyState() [1/2]

KeyState::KeyState	(	IEventQueue *	events,
		std::vector< std::string >	layouts,
		bool	isLangSyncEnabled )

◆ KeyState() [2/2]

KeyState::KeyState	(	IEventQueue *	events,
		deskflow::KeyMap &	keyMap,
		std::vector< std::string >	layouts,
		bool	isLangSyncEnabled )

◆ ~KeyState()

KeyState::~KeyState ( )

override

Member Function Documentation

◆ fakeAllKeysUp()

void KeyState::fakeAllKeysUp ( )

overridevirtual

Fake key releases for all fake pressed keys.

Synthesizes a key release event for every key that is synthetically pressed and updates the key state.

Implements IKeyState.

◆ fakeCtrlAltDel()

bool KeyState::fakeCtrlAltDel ( )

overridepure virtual

Fake ctrl+alt+del.

Synthesize a press of ctrl+alt+del. Return true if processing is complete and false if normal key processing should continue.

Implements IKeyState.

Implemented in deskflow::EiKeyState, MSWindowsKeyState, OSXKeyState, and XWindowsKeyState.

◆ fakeKey()

virtual void KeyState::fakeKey ( const Keystroke & keystroke )

protectedpure virtual

Fake a key event.

Synthesize an event for keystroke.

Implemented in deskflow::EiKeyState, MSWindowsKeyState, OSXKeyState, and XWindowsKeyState.

◆ fakeKeyDown()

void KeyState::fakeKeyDown	(	KeyID	id,
		KeyModifierMask	mask,
		KeyButton	button,
		const std::string &	lang )

overridevirtual

Fake a key press.

Synthesizes a key press event and updates the key state.

Implements IKeyState.

Reimplemented in MSWindowsKeyState.

◆ fakeKeyRepeat()

bool KeyState::fakeKeyRepeat	(	KeyID	id,
		KeyModifierMask	mask,
		int32_t	count,
		KeyButton	button,
		const std::string &	lang )

overridevirtual

Fake a key repeat.

Synthesizes a key repeat event and updates the key state.

Implements IKeyState.

Reimplemented in MSWindowsKeyState.

◆ fakeKeyUp()

bool KeyState::fakeKeyUp ( KeyButton button )

overridevirtual

Fake a key release.

Synthesizes a key release event and updates the key state.

Implements IKeyState.

◆ fakeMediaKey()

bool KeyState::fakeMediaKey ( KeyID id )

overridevirtual

Fake a media key.

Synthesizes a media key down and up. Only Mac would implement this by use cocoa appkit framework.

Implements IKeyState.

Reimplemented in OSXKeyState.

◆ getActiveModifiers()

KeyModifierMask KeyState::getActiveModifiers ( ) const

overridevirtual

Get the active modifiers.

Returns the modifiers that are currently active according to our shadowed state.

Implements IKeyState.

◆ getActiveModifiersRValue()

KeyModifierMask & KeyState::getActiveModifiersRValue ( )

protectedvirtual

Get the active modifiers.

Returns the modifiers that are currently active according to our shadowed state. The state may be modified.

Reimplemented in MSWindowsKeyState.

◆ getButton()

KeyButton KeyState::getButton	(	KeyID	id,
		int32_t	group ) const

protected

Get button for a KeyID.

Return the button mapped to key id in group group if any, otherwise returns 0.

◆ getEffectiveGroup()

int32_t KeyState::getEffectiveGroup	(	int32_t	group,
		int32_t	offset ) const

protected

Compute a group number.

Returns the number of the group offset groups after group group.

◆ getKeyMap()

virtual void KeyState::getKeyMap ( deskflow::KeyMap & keyMap )

protectedpure virtual

Get the keyboard map.

Fills keyMap with the current keyboard map.

Implemented in deskflow::EiKeyState, MSWindowsKeyState, OSXKeyState, and XWindowsKeyState.

◆ getKeyState()

int32_t KeyState::getKeyState ( KeyButton keyButton ) const

inline

◆ isIgnoredKey()

bool KeyState::isIgnoredKey	(	KeyID	key,
		KeyModifierMask	mask ) const

protectedvirtual

Check if key is ignored.

Returns true if and only if the key should always be ignored. The default returns true only for the toggle keys.

◆ isKeyDown()

bool KeyState::isKeyDown ( KeyButton ) const

overridevirtual

Test if key is pressed.

Returns true iff the given key is down. Half-duplex toggles always return false.

Implements IKeyState.

◆ onKey()

void KeyState::onKey	(	KeyButton	button,
		bool	down,
		KeyModifierMask	newState )

virtual

Handle key event.

Sets the state of button to down or up and updates the current modifier state to newState. This method should be called by primary screens only in response to local events. For auto-repeat set down to true. Overrides must forward to the superclass.

Reimplemented in MSWindowsKeyState.

◆ pollActiveGroup()

int32_t KeyState::pollActiveGroup ( ) const

overridepure virtual

Get the active keyboard layout from OS.

Returns the active keyboard layout according to the operating system.

Implements IKeyState.

Implemented in deskflow::EiKeyState, MSWindowsKeyState, OSXKeyState, and XWindowsKeyState.

◆ pollActiveModifiers()

KeyModifierMask KeyState::pollActiveModifiers ( ) const

overridepure virtual

Get the active modifiers from OS.

Returns the modifiers that are currently active according to the operating system.

Implements IKeyState.

Implemented in deskflow::EiKeyState, MSWindowsKeyState, OSXKeyState, and XWindowsKeyState.

◆ pollPressedKeys()

void KeyState::pollPressedKeys ( KeyButtonSet & pressedKeys ) const

overridepure virtual

Get the keys currently pressed from OS.

Adds any keys that are currently pressed according to the operating system to pressedKeys.

Implements IKeyState.

Implemented in deskflow::EiKeyState, MSWindowsKeyState, OSXKeyState, and XWindowsKeyState.

◆ sendKeyEvent()

void KeyState::sendKeyEvent	(	void *	target,
		bool	press,
		bool	isAutoRepeat,
		KeyID	key,
		KeyModifierMask	mask,
		int32_t	count,
		KeyButton	button )

virtual

Post a key event.

Posts a key event. This may adjust the event or post additional events in some circumstances. If this is overridden it must forward to the superclass.

Reimplemented in MSWindowsKeyState.

◆ setHalfDuplexMask()

void KeyState::setHalfDuplexMask ( KeyModifierMask )

overridevirtual

Set half-duplex mask.

Sets which modifier toggle keys are half-duplex. A half-duplex toggle key doesn't report a key release when toggled on and doesn't report a key press when toggled off.

Implements IKeyState.

◆ updateKeyMap() [1/2]

void KeyState::updateKeyMap ( )

inlineoverridevirtual

Update the keyboard map.

Causes the key state to get updated to reflect the current keyboard mapping.

Implements IKeyState.

◆ updateKeyMap() [2/2]

void KeyState::updateKeyMap ( deskflow::KeyMap * existing )

◆ updateKeyState()

void KeyState::updateKeyState ( )

overridevirtual

Update the key state.

Causes the key state to get updated to reflect the physical keyboard state.

Implements IKeyState.

The documentation for this class was generated from the following files:

src/lib/deskflow/KeyState.h
src/lib/deskflow/KeyState.cpp
