TCPListenSocket Class Reference

TCP listen socket. More...

#include <TCPListenSocket.h>

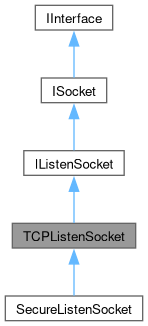

Inheritance diagram for TCPListenSocket:

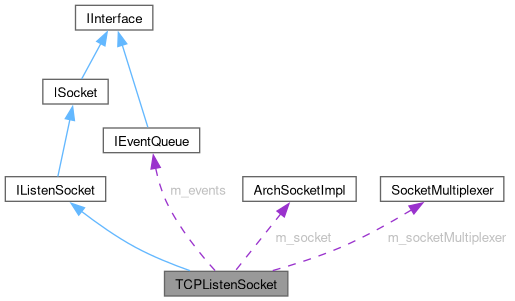

Collaboration diagram for TCPListenSocket:

Public Member Functions
	TCPListenSocket (IEventQueue *events, SocketMultiplexer *socketMultiplexer, IArchNetwork::AddressFamily family)
	TCPListenSocket (TCPListenSocket const &)=delete
	TCPListenSocket (TCPListenSocket &&)=delete
	~TCPListenSocket () override
TCPListenSocket &	operator= (TCPListenSocket const &)=delete
TCPListenSocket &	operator= (TCPListenSocket &&)=delete
void	bind (const NetworkAddress &) override
	Bind socket to address.
void	close () override
	Close socket.
void *	getEventTarget () const override
	Get event target.
std::unique_ptr< IDataSocket >	accept () override
	Accept connection.
ISocketMultiplexerJob *	serviceListening (ISocketMultiplexerJob *, bool, bool, bool)
Public Member Functions inherited from IListenSocket
Public Member Functions inherited from ISocket
Public Member Functions inherited from IInterface
virtual	~IInterface ()=default
	Interface destructor does nothing.

Protected Member Functions
void	setListeningJob ()

Protected Attributes
IEventQueue *	m_events
ArchSocket	m_socket
SocketMultiplexer *	m_socketMultiplexer

Detailed Description

TCP listen socket.

A listen socket using TCP.

Constructor & Destructor Documentation

TCPListenSocket() [1/3]

TCPListenSocket::TCPListenSocket	(	IEventQueue *	events,
		SocketMultiplexer *	socketMultiplexer,
		IArchNetwork::AddressFamily	family )

TCPListenSocket() [2/3]

TCPListenSocket::TCPListenSocket ( TCPListenSocket const & )

delete

TCPListenSocket() [3/3]

TCPListenSocket::TCPListenSocket ( TCPListenSocket && )

delete

~TCPListenSocket()

TCPListenSocket::~TCPListenSocket ( )

override

Member Function Documentation

accept()

std::unique_ptr< IDataSocket > TCPListenSocket::accept ( )

overridevirtual

Accept connection.

Accept a connection, returning a socket representing the full-duplex data stream. Returns nullptr if no socket is waiting to be accepted. This is only valid after a call to bind().

Implements IListenSocket.

bind()

void TCPListenSocket::bind ( const NetworkAddress & )

overridevirtual

Bind socket to address.

Binds the socket to a particular address.

Implements IListenSocket.

close()

void TCPListenSocket::close ( )

overridevirtual

Close socket.

Closes the socket. This should flush the output stream.

Implements IListenSocket.

getEventTarget()

void * TCPListenSocket::getEventTarget ( ) const

overridevirtual

Get event target.

Returns the event target for events generated by this socket.

Implements IListenSocket.

operator=() [1/2]

TCPListenSocket & TCPListenSocket::operator= ( TCPListenSocket && )

delete

operator=() [2/2]

TCPListenSocket & TCPListenSocket::operator= ( TCPListenSocket const & )

delete

serviceListening()

ISocketMultiplexerJob * TCPListenSocket::serviceListening	(	ISocketMultiplexerJob *	job,
		bool	read,
		bool	,
		bool	error )

setListeningJob()

void TCPListenSocket::setListeningJob ( )

protected

Member Data Documentation

m_events

IEventQueue* TCPListenSocket::m_events

protected

m_socket

ArchSocket TCPListenSocket::m_socket

protected

m_socketMultiplexer

SocketMultiplexer* TCPListenSocket::m_socketMultiplexer

protected

---

The documentation for this class was generated from the following files:

• src/lib/net/TCPListenSocket.h
• src/lib/net/TCPListenSocket.cpp
