IEventQueueBuffer Class Reference

Event queue buffer interface. More...

#include <IEventQueueBuffer.h>

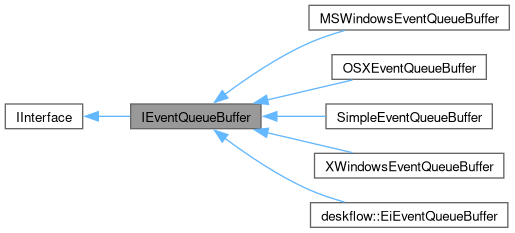

Inheritance diagram for IEventQueueBuffer:

Public Types
enum class	Type : uint8_t { Unknown , System , User }

Public Member Functions
virtual	~IEventQueueBuffer ()=default
manipulators
virtual void	init ()=0
	Initialize.
virtual void	waitForEvent (double timeout)=0
	Block waiting for an event.
virtual Type	getEvent (Event &event, uint32_t &dataID)=0
	Get the next event.
virtual bool	addEvent (uint32_t dataID)=0
	Post an event.
accessors
virtual bool	isEmpty () const =0
	Check if event queue buffer is empty.
virtual EventQueueTimer *	newTimer (double duration, bool oneShot) const =0
	Create a timer object.
virtual void	deleteTimer (EventQueueTimer *) const =0
	Destroy a timer object.

Detailed Description

Event queue buffer interface.

An event queue buffer provides a queue of events for an IEventQueue.

Member Enumeration Documentation

Type

enum class IEventQueueBuffer::Type : uint8_t

strong

Enumerator
Unknown	No event is available.
System	Event is a system event.
User	Event is a user event.

Constructor & Destructor Documentation

~IEventQueueBuffer()

virtual IEventQueueBuffer::~IEventQueueBuffer ( )

virtualdefault

Member Function Documentation

addEvent()

virtual bool IEventQueueBuffer::addEvent ( uint32_t dataID )

pure virtual

Post an event.

Add the given event to the end of the queue buffer. This is a user event and getEvent() must be able to identify it as such and return dataID. This method must cause waitForEvent() to return at some future time if it's blocked waiting on an event.

Implemented in deskflow::EiEventQueueBuffer, MSWindowsEventQueueBuffer, OSXEventQueueBuffer, SimpleEventQueueBuffer, and XWindowsEventQueueBuffer.

deleteTimer()

virtual void IEventQueueBuffer::deleteTimer ( EventQueueTimer * ) const

pure virtual

Destroy a timer object.

Destroy a timer object previously returned by newTimer().

Implemented in deskflow::EiEventQueueBuffer, MSWindowsEventQueueBuffer, OSXEventQueueBuffer, SimpleEventQueueBuffer, and XWindowsEventQueueBuffer.

getEvent()

virtual Type IEventQueueBuffer::getEvent ( Event & event, uint32_t & dataID )

pure virtual

Get the next event.

Get the next event from the buffer. Return None if no event is available. If a system event is next, return System and fill in event. The event data in a system event can point to a static buffer (because Event::deleteData() will not attempt to delete data in a System event). Otherwise, return User and fill in dataID with the value passed to addEvent().

Implemented in deskflow::EiEventQueueBuffer, MSWindowsEventQueueBuffer, OSXEventQueueBuffer, SimpleEventQueueBuffer, and XWindowsEventQueueBuffer.

init()

virtual void IEventQueueBuffer::init ( )

pure virtual

Initialize.

Useful for platform-specific initialisation from a specific thread.

Implemented in deskflow::EiEventQueueBuffer, MSWindowsEventQueueBuffer, OSXEventQueueBuffer, SimpleEventQueueBuffer, and XWindowsEventQueueBuffer.

isEmpty()

virtual bool IEventQueueBuffer::isEmpty ( ) const

pure virtual

Check if event queue buffer is empty.

Return true iff the event queue buffer is empty.

Implemented in deskflow::EiEventQueueBuffer, MSWindowsEventQueueBuffer, OSXEventQueueBuffer, SimpleEventQueueBuffer, and XWindowsEventQueueBuffer.

newTimer()

virtual EventQueueTimer * IEventQueueBuffer::newTimer ( double duration, bool oneShot ) const

pure virtual

Create a timer object.

Create and return a timer object. The object is opaque and is used only by the buffer but it must be a valid object (i.e. not nullptr).

Implemented in deskflow::EiEventQueueBuffer, MSWindowsEventQueueBuffer, OSXEventQueueBuffer, SimpleEventQueueBuffer, and XWindowsEventQueueBuffer.

waitForEvent()

virtual void IEventQueueBuffer::waitForEvent ( double timeout )

pure virtual

Block waiting for an event.

Wait for an event in the event queue buffer for up to timeout seconds.

Implemented in deskflow::EiEventQueueBuffer, MSWindowsEventQueueBuffer, OSXEventQueueBuffer, SimpleEventQueueBuffer, and XWindowsEventQueueBuffer.

---

The documentation for this class was generated from the following file:

• src/lib/base/IEventQueueBuffer.h
