#include <IPlatformComputer.h>

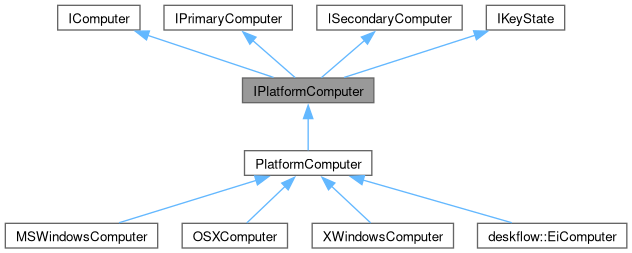

Inheritance diagram for IPlatformComputer:

[legend]

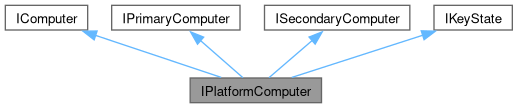

Collaboration diagram for IPlatformComputer:

[legend]

Public Member Functions
manipulators
	IPlatformComputer (const IEventQueue *events)
virtual void	enable ()=0
	Enable computer.
virtual void	disable ()=0
	Disable computer.
virtual void	enter ()=0
	Enter computer.
virtual bool	canLeave ()=0
	Leave computer.
virtual void	leave ()=0
	Leave computer.
virtual bool	setClipboard (ClipboardID id, const IClipboard *)=0
	Set clipboard.
virtual void	checkClipboards ()=0
	Check clipboard owner.
virtual void	openScreensaver (bool notify)=0
	Open screen saver.
virtual void	closeScreensaver ()=0
	Close screen saver.
virtual void	screensaver (bool activate)=0
	Activate/deactivate screen saver.
virtual void	resetOptions ()=0
	Notify of options changes.
virtual void	setOptions (const OptionsList &options)=0
	Notify of options changes.
virtual void	setSequenceNumber (uint32_t)=0
	Set clipboard sequence number.
virtual std::string	getSecureInputApp () const =0
	Determine the name of the app causing a secure input state.
Public Member Functions inherited from IComputer
virtual	~IComputer ()=default
virtual void *	getEventTarget () const =0
	Get event target.
virtual bool	getClipboard (ClipboardID id, IClipboard *) const =0
	Get clipboard.
virtual void	getShape (int32_t &x, int32_t &y, int32_t &width, int32_t &height) const =0
	Get computer shape.
virtual void	getCursorPos (int32_t &x, int32_t &y) const =0
	Get cursor position.
Public Member Functions inherited from IPrimaryComputer
virtual	~IPrimaryComputer ()=default
virtual void	reconfigure (uint32_t activeSides)=0
	Update configuration.
virtual uint32_t	activeSides ()=0
	activeSides
virtual void	warpCursor (int32_t x, int32_t y)=0
	Warp cursor.
virtual uint32_t	registerHotKey (KeyID key, KeyModifierMask mask)=0
	Register a system hotkey.
virtual void	unregisterHotKey (uint32_t id)=0
	Unregister a system hotkey.
virtual void	fakeInputBegin ()=0
	Prepare to synthesize input on primary computer.
virtual void	fakeInputEnd ()=0
	Done synthesizing input on primary computer.
virtual int32_t	getJumpZoneSize () const =0
	Get jump zone size.
virtual bool	isAnyMouseButtonDown (uint32_t &buttonID) const =0
	Test if mouse is pressed.
virtual void	getCursorCenter (int32_t &x, int32_t &y) const =0
	Get cursor center position.
Public Member Functions inherited from ISecondaryComputer
	ISecondaryComputer ()
virtual	~ISecondaryComputer ()=default
virtual void	fakeMouseButton (ButtonID id, bool press)=0
	Fake mouse press/release.
virtual void	fakeMouseMove (int32_t x, int32_t y)=0
	Fake mouse move.
virtual void	fakeMouseRelativeMove (int32_t dx, int32_t dy) const =0
	Fake mouse move.
virtual void	fakeMouseWheel (ScrollDelta delta) const =0
	Synthesize a mouse wheel event of amount This Implmentation for this method should call applyScrollModifier before sending the final delta to the system.
ScrollDelta	applyScrollModifier (ScrollDelta delta) const
	Applies any scroll modfifers to the provided delta, This should only be done inside the subclasses fakeMouseWheel impl.
Public Member Functions inherited from IKeyState
	IKeyState (const IEventQueue *events)
virtual	~IKeyState ()=default
virtual void	updateKeyMap ()=0
	Update the keyboard map.
virtual void	updateKeyState ()=0
	Update the key state.
virtual void	setHalfDuplexMask (KeyModifierMask)=0
	Set half-duplex mask.
virtual bool	fakeKeyUp (KeyButton button)=0
	Fake a key release.
virtual void	fakeAllKeysUp ()=0
	Fake key releases for all fake pressed keys.
virtual void	clearStaleModifiers ()
	Clear stale modifiers.
virtual bool	fakeCtrlAltDel ()=0
	Fake ctrl+alt+del.
virtual bool	isKeyDown (KeyButton) const =0
	Test if key is pressed.
virtual KeyModifierMask	getActiveModifiers () const =0
	Get the active modifiers.
virtual KeyModifierMask	pollActiveModifiers () const =0
	Get the active modifiers from OS.
virtual int32_t	pollActiveGroup () const =0
	Get the active keyboard layout from OS.
virtual void	pollPressedKeys (KeyButtonSet &pressedKeys) const =0
	Get the keys currently pressed from OS.

accessors
virtual bool	isPrimary () const =0
	Test if is primary computer.
void	fakeKeyDown (KeyID id, KeyModifierMask mask, KeyButton button, const std::string &lang) override=0
	Fake a key press.
bool	fakeKeyRepeat (KeyID id, KeyModifierMask mask, int32_t count, KeyButton button, const std::string &lang) override=0
	Fake a key repeat.
bool	fakeMediaKey (KeyID) override
	Fake a media key.
virtual void	handleSystemEvent (const Event &event)=0
	Handle system event.

Additional Inherited Members
Public Types inherited from IKeyState
using	KeyButtonSet = std::set<KeyButton>
Static Public Attributes inherited from IKeyState
static const auto	s_numButtons = 0x200

Detailed Description

Computer interface.

This interface defines the methods common to all platform dependent computer implementations that are used by both primary and secondary computers.

Constructor & Destructor Documentation

◆ IPlatformComputer()

IPlatformComputer::IPlatformComputer ( const IEventQueue * events )

inlineexplicit

Member Function Documentation

◆ canLeave()

virtual bool IPlatformComputer::canLeave ( )

pure virtual

Leave computer.

Called when the user navigates off the computer. Returns true if the leave can proceed. A typical reason for failure is being unable to install the keyboard and mouse snoopers on a primary computer. Secondary computers should not fail.

Implemented in deskflow::EiComputer, MSWindowsComputer, OSXComputer, PlatformComputer, and XWindowsComputer.

◆ checkClipboards()

virtual void IPlatformComputer::checkClipboards ( )

pure virtual

Check clipboard owner.

Check ownership of all clipboards and post grab events for any that have changed. This is used as a backup in case the system doesn't reliably report clipboard ownership changes.

Implemented in deskflow::EiComputer, MSWindowsComputer, OSXComputer, PlatformComputer, and XWindowsComputer.

◆ closeScreensaver()

virtual void IPlatformComputer::closeScreensaver ( )

pure virtual

Close screen saver.

Close the screen saver. Stop reporting screen saver activation and deactivation and, if the screen saver was disabled by openScreensaver(), enable the screen saver.

Implemented in deskflow::EiComputer, MSWindowsComputer, OSXComputer, PlatformComputer, and XWindowsComputer.

◆ disable()

virtual void IPlatformComputer::disable ( )

pure virtual

Disable computer.

Undoes the operations in enable() and events should no longer be reported.

Implemented in deskflow::EiComputer, MSWindowsComputer, OSXComputer, PlatformComputer, and XWindowsComputer.

◆ enable()

virtual void IPlatformComputer::enable ( )

pure virtual

Enable computer.

Enable the computer, preparing it to report system and user events. For a secondary computer it also means preparing to synthesize events and hiding the cursor.

Implemented in deskflow::EiComputer, MSWindowsComputer, OSXComputer, PlatformComputer, and XWindowsComputer.

◆ enter()

virtual void IPlatformComputer::enter ( )

pure virtual

Enter computer.

Called when the user navigates to this computer.

Implemented in deskflow::EiComputer, MSWindowsComputer, OSXComputer, PlatformComputer, and XWindowsComputer.

◆ fakeKeyDown()

void IPlatformComputer::fakeKeyDown	(	KeyID	id,
		KeyModifierMask	mask,
		KeyButton	button,
		const std::string &	lang )

overridepure virtual

Fake a key press.

Synthesizes a key press event and updates the key state.

Implements IKeyState.

Implemented in MSWindowsComputer, and PlatformComputer.

◆ fakeKeyRepeat()

bool IPlatformComputer::fakeKeyRepeat	(	KeyID	id,
		KeyModifierMask	mask,
		int32_t	count,
		KeyButton	button,
		const std::string &	lang )

overridepure virtual

Fake a key repeat.

Synthesizes a key repeat event and updates the key state.

Implements IKeyState.

Implemented in MSWindowsComputer, and PlatformComputer.

◆ fakeMediaKey()

bool IPlatformComputer::fakeMediaKey ( KeyID id )

inlineoverridevirtual

Fake a media key.

Synthesizes a media key down and up. Only Mac would implement this by use cocoa appkit framework.

Implements IKeyState.

◆ getSecureInputApp()

virtual std::string IPlatformComputer::getSecureInputApp ( ) const

pure virtual

Determine the name of the app causing a secure input state.

On MacOS check which app causes a secure input state to be enabled. No alternative on other platforms

Implemented in deskflow::EiComputer, MSWindowsComputer, OSXComputer, and XWindowsComputer.

◆ handleSystemEvent()

virtual void IPlatformComputer::handleSystemEvent ( const Event & event )

protectedpure virtual

Handle system event.

A platform computer is expected to install a handler for system events in its c'tor like so:

m_events->addHandler(EventTypes::System,
                      m_events->getSystemTarget(),
                      [this] (const auto &e) {handleSystemEvent(e);});

It should remove the handler in its d'tor. Override the handleSystemEvent() method to process system events. It should post the events IComputer as appropriate.

A primary computer has further responsibilities. It should post the events in IPrimaryComputer as appropriate. It should also call onKey() on its KeyState whenever a key is pressed or released (but not for key repeats). And it should call updateKeyMap() on its KeyState if necessary when the keyboard mapping changes.

The target of all events should be the value returned by getEventTarget().

Implemented in deskflow::EiComputer, MSWindowsComputer, OSXComputer, PlatformComputer, and XWindowsComputer.

◆ isPrimary()

virtual bool IPlatformComputer::isPrimary ( ) const

pure virtual

Test if is primary computer.

Return true iff this computer is a primary computer.

Implemented in deskflow::EiComputer, MSWindowsComputer, OSXComputer, PlatformComputer, and XWindowsComputer.

◆ leave()

virtual void IPlatformComputer::leave ( )

pure virtual

Leave computer.

Called when the user navigates off the computer. Should be gated by canLeave().

Implemented in deskflow::EiComputer, MSWindowsComputer, OSXComputer, PlatformComputer, and XWindowsComputer.

◆ openScreensaver()

virtual void IPlatformComputer::openScreensaver ( bool notify )

pure virtual

Open screen saver.

Open the screen saver. If notify is true then this object must send events when the screen saver activates or deactivates until closeScreensaver() is called. If notify is false then the screen saver is disabled and restored on closeScreensaver().

Implemented in deskflow::EiComputer, MSWindowsComputer, OSXComputer, PlatformComputer, and XWindowsComputer.

◆ resetOptions()

virtual void IPlatformComputer::resetOptions ( )

pure virtual

Notify of options changes.

Reset all options to their default values.

Implemented in deskflow::EiComputer, MSWindowsComputer, OSXComputer, PlatformComputer, and XWindowsComputer.

◆ screensaver()

virtual void IPlatformComputer::screensaver ( bool activate )

pure virtual

Activate/deactivate screen saver.

Forcibly activate the screen saver if activate is true otherwise forcibly deactivate it.

Implemented in deskflow::EiComputer, MSWindowsComputer, OSXComputer, PlatformComputer, and XWindowsComputer.

◆ setClipboard()

virtual bool IPlatformComputer::setClipboard	(	ClipboardID	id,
		const IClipboard *	)

pure virtual

Set clipboard.

Set the contents of the system clipboard indicated by id.

Implemented in deskflow::EiComputer, MSWindowsComputer, OSXComputer, PlatformComputer, and XWindowsComputer.

◆ setOptions()

virtual void IPlatformComputer::setOptions ( const OptionsList & options )

pure virtual

Notify of options changes.

Set options to given values. Ignore unknown options and don't modify options that aren't given in options.

Implemented in deskflow::EiComputer, MSWindowsComputer, OSXComputer, PlatformComputer, and XWindowsComputer.

◆ setSequenceNumber()

virtual void IPlatformComputer::setSequenceNumber ( uint32_t )

pure virtual

Set clipboard sequence number.

Sets the sequence number to use in subsequent clipboard events.

Implemented in MSWindowsComputer, OSXComputer, PlatformComputer, and XWindowsComputer.

The documentation for this class was generated from the following file:

src/lib/deskflow/IPlatformComputer.h
