IPrimaryScreen Class Reference

Primary screen interface. More...

#include <IPrimaryScreen.h>

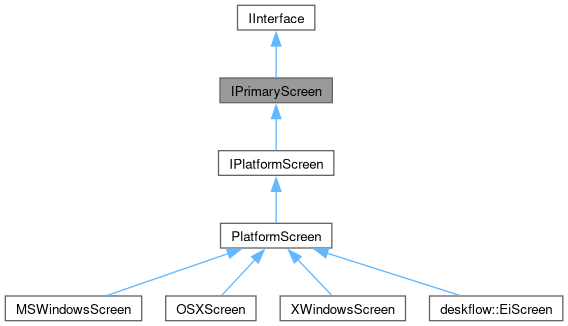

Inheritance diagram for IPrimaryScreen:

Collaboration diagram for IPrimaryScreen:

Classes
class	ButtonInfo
	Button event data. More...
class	EiConnectInfo
class	HotKeyInfo
	Hot key event data. More...
class	MotionInfo
	Motion event data. More...
class	WheelInfo
	Wheel motion event data. More...

Public Member Functions
manipulators
virtual void	reconfigure (uint32_t activeSides)=0
	Update configuration.
virtual uint32_t	activeSides ()=0
	activeSides
virtual void	warpCursor (int32_t x, int32_t y)=0
	Warp cursor.
virtual uint32_t	registerHotKey (KeyID key, KeyModifierMask mask)=0
	Register a system hotkey.
virtual void	unregisterHotKey (uint32_t id)=0
	Unregister a system hotkey.
virtual void	fakeInputBegin ()=0
	Prepare to synthesize input on primary screen.
virtual void	fakeInputEnd ()=0
	Done synthesizing input on primary screen.
accessors
virtual int32_t	getJumpZoneSize () const =0
	Get jump zone size.
virtual bool	isAnyMouseButtonDown (uint32_t &buttonID) const =0
	Test if mouse is pressed.
virtual void	getCursorCenter (int32_t &x, int32_t &y) const =0
	Get cursor center position.
Public Member Functions inherited from IInterface
virtual	~IInterface ()=default
	Interface destructor does nothing.

Detailed Description

Primary screen interface.

This interface defines the methods common to all platform dependent primary screen implementations.

Member Function Documentation

activeSides()

virtual uint32_t IPrimaryScreen::activeSides ( )

pure virtual

activeSides

Returns

a bitmask of DirectionMask indicating which sides of the primary screen are linked to clients

Implemented in deskflow::EiScreen, IPlatformScreen, MSWindowsScreen, OSXScreen, PlatformScreen, and XWindowsScreen.

fakeInputBegin()

virtual void IPrimaryScreen::fakeInputBegin ( )

pure virtual

Prepare to synthesize input on primary screen.

Prepares the primary screen to receive synthesized input. We do not want to receive this synthesized input as user input so this method ensures that we ignore it. Calls to fakeInputBegin() may not be nested.

Implemented in deskflow::EiScreen, IPlatformScreen, MSWindowsScreen, OSXScreen, PlatformScreen, and XWindowsScreen.

fakeInputEnd()

virtual void IPrimaryScreen::fakeInputEnd ( )

pure virtual

Done synthesizing input on primary screen.

Undoes whatever fakeInputBegin() did.

Implemented in deskflow::EiScreen, IPlatformScreen, MSWindowsScreen, OSXScreen, PlatformScreen, and XWindowsScreen.

getCursorCenter()

virtual void IPrimaryScreen::getCursorCenter ( int32_t & x, int32_t & y ) const

pure virtual

Get cursor center position.

Return the cursor center position which is where we park the cursor to compute cursor motion deltas and should be far from the edges of the screen, typically the center.

Implemented in IPlatformScreen, MSWindowsScreen, OSXScreen, PlatformScreen, and XWindowsScreen.

getJumpZoneSize()

virtual int32_t IPrimaryScreen::getJumpZoneSize ( ) const

pure virtual

Get jump zone size.

Return the jump zone size, the size of the regions on the edges of the screen that cause the cursor to jump to another screen.

Implemented in deskflow::EiScreen, IPlatformScreen, MSWindowsScreen, OSXScreen, PlatformScreen, and XWindowsScreen.

isAnyMouseButtonDown()

virtual bool IPrimaryScreen::isAnyMouseButtonDown ( uint32_t & buttonID ) const

pure virtual

Test if mouse is pressed.

Return true if any mouse button is currently pressed. Ideally, "current" means up to the last processed event but it can mean the current physical mouse button state.

Implemented in IPlatformScreen, MSWindowsScreen, OSXScreen, PlatformScreen, and XWindowsScreen.

reconfigure()

virtual void IPrimaryScreen::reconfigure ( uint32_t activeSides )

pure virtual

Update configuration.

This is called when the configuration has changed. activeSides is a bitmask of DirectionMask indicating which sides of the primary screen are linked to clients. Override to handle the possible change in jump zones.

Implemented in IPlatformScreen, MSWindowsScreen, OSXScreen, PlatformScreen, and XWindowsScreen.

registerHotKey()

virtual uint32_t IPrimaryScreen::registerHotKey ( KeyID key, KeyModifierMask mask )

pure virtual

Register a system hotkey.

Registers a system-wide hotkey. The screen should arrange for an event to be delivered to itself when the hot key is pressed or released. When that happens the screen should post a getHotKeyDownEvent() or getHotKeyUpEvent(), respectively. The hot key is key key with exactly the modifiers mask. Returns 0 on failure otherwise an id that can be used to unregister the hotkey.

A hot key is a set of modifiers and a key, which may itself be a modifier. The hot key is pressed when the hot key's modifiers and only those modifiers are logically down (active) and the key is pressed. The hot key is released when the key is released, regardless of the modifiers.

The hot key event should be generated no matter what window or application has the focus. No other window or application should receive the key press or release events (they can and should see the modifier key events). When the key is a modifier, it's acceptable to allow the user to press the modifiers in any order or to require the user to press the given key last.

Implemented in deskflow::EiScreen, IPlatformScreen, MSWindowsScreen, OSXScreen, PlatformScreen, and XWindowsScreen.

unregisterHotKey()

virtual void IPrimaryScreen::unregisterHotKey ( uint32_t id )

pure virtual

Unregister a system hotkey.

Unregisters a previously registered hot key.

Implemented in IPlatformScreen, MSWindowsScreen, OSXScreen, PlatformScreen, and XWindowsScreen.

warpCursor()

virtual void IPrimaryScreen::warpCursor ( int32_t x, int32_t y )

pure virtual

Warp cursor.

Warp the cursor to the absolute coordinates x,y. Also discard input events up to and including the warp before returning.

Implemented in IPlatformScreen, MSWindowsScreen, OSXScreen, PlatformScreen, and XWindowsScreen.

---

The documentation for this class was generated from the following file:

• src/lib/deskflow/IPrimaryScreen.h
