Implementation of IPlatformScreen for OS X. More...

#include <OSXScreen.h>

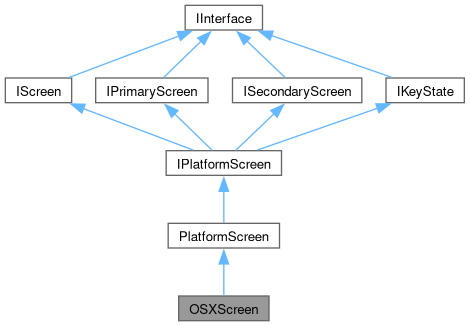

Inheritance diagram for OSXScreen:

[legend]

Collaboration diagram for OSXScreen:

[legend]

Public Member Functions
	OSXScreen (IEventQueue *events, bool isPrimary, bool enableLangSync=false, deskflow::ClientScrollDirection scrollDirection=deskflow::ClientScrollDirection::Normal)
virtual	~OSXScreen ()
IEventQueue *	getEvents () const
void *	getEventTarget () const override
	Get event target.
bool	getClipboard (ClipboardID id, IClipboard *) const override
	Get clipboard.
void	getShape (int32_t &x, int32_t &y, int32_t &width, int32_t &height) const override
	Get screen shape.
void	getCursorPos (int32_t &x, int32_t &y) const override
	Get cursor position.
void	reconfigure (uint32_t activeSides) override
	Update configuration.
uint32_t	activeSides () override
	activeSides
void	warpCursor (int32_t x, int32_t y) override
	Warp cursor.
uint32_t	registerHotKey (KeyID key, KeyModifierMask mask) override
	Register a system hotkey.
void	unregisterHotKey (uint32_t id) override
	Unregister a system hotkey.
void	fakeInputBegin () override
	Prepare to synthesize input on primary screen.
void	fakeInputEnd () override
	Done synthesizing input on primary screen.
int32_t	getJumpZoneSize () const override
	Get jump zone size.
bool	isAnyMouseButtonDown (uint32_t &buttonID) const override
	Test if mouse is pressed.
void	getCursorCenter (int32_t &x, int32_t &y) const override
	Get cursor center position.
void	fakeMouseButton (ButtonID id, bool press) override
	Fake mouse press/release.
void	fakeMouseMove (int32_t x, int32_t y) override
	Fake mouse move.
void	fakeMouseRelativeMove (int32_t dx, int32_t dy) const override
	Fake mouse move.
void	fakeMouseWheel (int32_t xDelta, int32_t yDelta) const override
	Fake mouse wheel.
void	enable () override
	Enable screen.
void	disable () override
	Disable screen.
void	enter () override
	Enter screen.
bool	canLeave () override
	Leave screen.
void	leave () override
	Leave screen.
bool	setClipboard (ClipboardID, const IClipboard *) override
	Set clipboard.
void	checkClipboards () override
	Check clipboard owner.
void	openScreensaver (bool notify) override
	Open screen saver.
void	closeScreensaver () override
	Close screen saver.
void	screensaver (bool activate) override
	Activate/deactivate screen saver.
void	resetOptions () override
	Notify of options changes.
void	setOptions (const OptionsList &options) override
	Notify of options changes.
void	setSequenceNumber (uint32_t) override
	Set clipboard sequence number.
bool	isPrimary () const override
	Test if is primary screen.
std::string	getSecureInputApp () const override
	Determine the name of the app causing a secure input state.
void	waitForCarbonLoop () const
Public Member Functions inherited from PlatformScreen
	PlatformScreen (IEventQueue *events, deskflow::ClientScrollDirection scrollDirection=deskflow::ClientScrollDirection::Normal)
	~PlatformScreen () override=default
void	updateKeyMap () override
	Update the keyboard map.
void	updateKeyState () override
	Update the key state.
void	setHalfDuplexMask (KeyModifierMask) override
	Set half-duplex mask.
void	fakeKeyDown (KeyID id, KeyModifierMask mask, KeyButton button, const std::string &) override
	Fake a key press.
bool	fakeKeyRepeat (KeyID id, KeyModifierMask mask, int32_t count, KeyButton button, const std::string &lang) override
	Fake a key repeat.
bool	fakeKeyUp (KeyButton button) override
	Fake a key release.
void	fakeAllKeysUp () override
	Fake key releases for all fake pressed keys.
bool	fakeCtrlAltDel () override
	Fake ctrl+alt+del.
bool	isKeyDown (KeyButton) const override
	Test if key is pressed.
KeyModifierMask	getActiveModifiers () const override
	Get the active modifiers.
KeyModifierMask	pollActiveModifiers () const override
	Get the active modifiers from OS.
int32_t	pollActiveGroup () const override
	Get the active keyboard layout from OS.
void	pollPressedKeys (KeyButtonSet &pressedKeys) const override
	Get the keys currently pressed from OS.
Public Member Functions inherited from IPlatformScreen
	IPlatformScreen (const IEventQueue *events)
bool	fakeMediaKey (KeyID id) override
	Fake a media key.
Public Member Functions inherited from IScreen
Public Member Functions inherited from IInterface
virtual	~IInterface ()=default
	Interface destructor does nothing.
Public Member Functions inherited from IPrimaryScreen
Public Member Functions inherited from ISecondaryScreen
Public Member Functions inherited from IKeyState
	IKeyState (const IEventQueue *events)

Protected Member Functions
void	handleSystemEvent (const Event &e) override
	Handle system event.
void	updateButtons () override
	Update mouse buttons.
IKeyState *	getKeyState () const override
	Get the key state.
Protected Member Functions inherited from PlatformScreen
virtual int32_t	mapClientScrollDirection (int32_t) const
	mapClientScrollDirection Convert scroll according to client scroll directio

Additional Inherited Members
Public Types inherited from IKeyState
using	KeyButtonSet = std::set<KeyButton>
Static Public Attributes inherited from IKeyState
static const auto	s_numButtons = 0x200

Detailed Description

Implementation of IPlatformScreen for OS X.

Constructor & Destructor Documentation

◆ OSXScreen()

OSXScreen::OSXScreen	(	IEventQueue *	events,
		bool	isPrimary,
		bool	enableLangSync = false,
		deskflow::ClientScrollDirection	scrollDirection = deskflow::ClientScrollDirection::Normal )

◆ ~OSXScreen()

OSXScreen::~OSXScreen ( )

virtual

Member Function Documentation

◆ activeSides()

uint32_t OSXScreen::activeSides ( )

overridevirtual

activeSides

Returns: a bitmask of DirectionMask indicating which sides of the primary screen are linked to clients

Implements PlatformScreen.

◆ canLeave()

bool OSXScreen::canLeave ( )

overridevirtual

Leave screen.

Called when the user navigates off the screen. Returns true if the leave can proceed. A typical reason for failure is being unable to install the keyboard and mouse snoopers on a primary screen. Secondary screens should not fail.

Implements PlatformScreen.

◆ checkClipboards()

void OSXScreen::checkClipboards ( )

overridevirtual

Check clipboard owner.

Check ownership of all clipboards and post grab events for any that have changed. This is used as a backup in case the system doesn't reliably report clipboard ownership changes.

Implements PlatformScreen.

◆ closeScreensaver()

void OSXScreen::closeScreensaver ( )

overridevirtual

Close screen saver.

Close the screen saver. Stop reporting screen saver activation and deactivation and, if the screen saver was disabled by openScreensaver(), enable the screen saver.

Implements PlatformScreen.

◆ disable()

void OSXScreen::disable ( )

overridevirtual

Disable screen.

Undoes the operations in enable() and events should no longer be reported.

Implements PlatformScreen.

◆ enable()

void OSXScreen::enable ( )

overridevirtual

Enable screen.

Enable the screen, preparing it to report system and user events. For a secondary screen it also means preparing to synthesize events and hiding the cursor.

Implements PlatformScreen.

◆ enter()

void OSXScreen::enter ( )

overridevirtual

Enter screen.

Called when the user navigates to this screen.

Implements PlatformScreen.

◆ fakeInputBegin()

void OSXScreen::fakeInputBegin ( )

overridevirtual

Prepare to synthesize input on primary screen.

Prepares the primary screen to receive synthesized input. We do not want to receive this synthesized input as user input so this method ensures that we ignore it. Calls to fakeInputBegin() may not be nested.

Implements PlatformScreen.

◆ fakeInputEnd()

void OSXScreen::fakeInputEnd ( )

overridevirtual

Done synthesizing input on primary screen.

Undoes whatever fakeInputBegin() did.

Implements PlatformScreen.

◆ fakeMouseButton()

void OSXScreen::fakeMouseButton	(	ButtonID	id,
		bool	press )

overridevirtual

Fake mouse press/release.

Synthesize a press or release of mouse button id.

Implements PlatformScreen.

◆ fakeMouseMove()

void OSXScreen::fakeMouseMove	(	int32_t	x,
		int32_t	y )

overridevirtual

Fake mouse move.

Synthesize a mouse move to the absolute coordinates x,y.

Implements PlatformScreen.

◆ fakeMouseRelativeMove()

void OSXScreen::fakeMouseRelativeMove	(	int32_t	dx,
		int32_t	dy ) const

overridevirtual

Fake mouse move.

Synthesize a mouse move to the relative coordinates dx,dy.

Implements PlatformScreen.

◆ fakeMouseWheel()

void OSXScreen::fakeMouseWheel	(	int32_t	xDelta,
		int32_t	yDelta ) const

overridevirtual

Fake mouse wheel.

Synthesize a mouse wheel event of amount xDelta and yDelta.

Implements PlatformScreen.

◆ getClipboard()

bool OSXScreen::getClipboard	(	ClipboardID	id,
		IClipboard *	) const

overridevirtual

Get clipboard.

Save the contents of the clipboard indicated by id and return true iff successful.

Implements PlatformScreen.

◆ getCursorCenter()

void OSXScreen::getCursorCenter	(	int32_t &	x,
		int32_t &	y ) const

overridevirtual

Get cursor center position.

Return the cursor center position which is where we park the cursor to compute cursor motion deltas and should be far from the edges of the screen, typically the center.

Implements PlatformScreen.

◆ getCursorPos()

void OSXScreen::getCursorPos	(	int32_t &	x,
		int32_t &	y ) const

overridevirtual

Get cursor position.

Return the current position of the cursor in x and y.

Implements PlatformScreen.

◆ getEvents()

IEventQueue * OSXScreen::getEvents ( ) const

inline

◆ getEventTarget()

void * OSXScreen::getEventTarget ( ) const

overridevirtual

Get event target.

Returns the target used for events created by this object.

Implements PlatformScreen.

◆ getJumpZoneSize()

int32_t OSXScreen::getJumpZoneSize ( ) const

overridevirtual

Get jump zone size.

Return the jump zone size, the size of the regions on the edges of the screen that cause the cursor to jump to another screen.

Implements PlatformScreen.

◆ getKeyState()

IKeyState * OSXScreen::getKeyState ( ) const

overrideprotectedvirtual

Get the key state.

Subclasses must implement this method to return the platform specific key state object that each subclass must have.

Implements PlatformScreen.

◆ getSecureInputApp()

std::string OSXScreen::getSecureInputApp ( ) const

overridevirtual

Determine the name of the app causing a secure input state.

On MacOS check which app causes a secure input state to be enabled. No alternative on other platforms

Implements IPlatformScreen.

◆ getShape()

void OSXScreen::getShape	(	int32_t &	x,
		int32_t &	y,
		int32_t &	width,
		int32_t &	height ) const

overridevirtual

Get screen shape.

Return the position of the upper-left corner of the screen in x and y and the size of the screen in width and height.

Implements PlatformScreen.

◆ handleSystemEvent()

void OSXScreen::handleSystemEvent ( const Event & event )

overrideprotectedvirtual

Handle system event.

A platform screen is expected to install a handler for system events in its c'tor like so:

m_events->addHandler(EventTypes::System,
                      m_events->getSystemTarget(),
                      [this] (const auto &e) {handleSystemEvent(e);});

It should remove the handler in its d'tor. Override the handleSystemEvent() method to process system events. It should post the events IScreen as appropriate.

A primary screen has further responsibilities. It should post the events in IPrimaryScreen as appropriate. It should also call onKey() on its KeyState whenever a key is pressed or released (but not for key repeats). And it should call updateKeyMap() on its KeyState if necessary when the keyboard mapping changes.

The target of all events should be the value returned by getEventTarget().

Implements PlatformScreen.

◆ isAnyMouseButtonDown()

bool OSXScreen::isAnyMouseButtonDown ( uint32_t & buttonID ) const

overridevirtual

Test if mouse is pressed.

Return true if any mouse button is currently pressed. Ideally, "current" means up to the last processed event but it can mean the current physical mouse button state.

Implements PlatformScreen.

◆ isPrimary()

bool OSXScreen::isPrimary ( ) const

overridevirtual

Test if is primary screen.

Return true iff this screen is a primary screen.

Implements PlatformScreen.

◆ leave()

void OSXScreen::leave ( )

overridevirtual

Leave screen.

Called when the user navigates off the screen. Should be gated by canLeave().

Implements PlatformScreen.

◆ openScreensaver()

void OSXScreen::openScreensaver ( bool notify )

overridevirtual

Open screen saver.

Open the screen saver. If notify is true then this object must send events when the screen saver activates or deactivates until closeScreensaver() is called. If notify is false then the screen saver is disabled and restored on closeScreensaver().

Implements PlatformScreen.

◆ reconfigure()

void OSXScreen::reconfigure ( uint32_t activeSides )

overridevirtual

Update configuration.

This is called when the configuration has changed. activeSides is a bitmask of DirectionMask indicating which sides of the primary screen are linked to clients. Override to handle the possible change in jump zones.

Implements PlatformScreen.

◆ registerHotKey()

uint32_t OSXScreen::registerHotKey	(	KeyID	key,
		KeyModifierMask	mask )

overridevirtual

Register a system hotkey.

Registers a system-wide hotkey. The screen should arrange for an event to be delivered to itself when the hot key is pressed or released. When that happens the screen should post a getHotKeyDownEvent() or getHotKeyUpEvent(), respectively. The hot key is key key with exactly the modifiers mask. Returns 0 on failure otherwise an id that can be used to unregister the hotkey.

A hot key is a set of modifiers and a key, which may itself be a modifier. The hot key is pressed when the hot key's modifiers and only those modifiers are logically down (active) and the key is pressed. The hot key is released when the key is released, regardless of the modifiers.

The hot key event should be generated no matter what window or application has the focus. No other window or application should receive the key press or release events (they can and should see the modifier key events). When the key is a modifier, it's acceptable to allow the user to press the modifiers in any order or to require the user to press the given key last.

Implements PlatformScreen.

◆ resetOptions()

void OSXScreen::resetOptions ( )

overridevirtual

Notify of options changes.

Reset all options to their default values.

Implements PlatformScreen.

◆ screensaver()

void OSXScreen::screensaver ( bool activate )

overridevirtual

Activate/deactivate screen saver.

Forcibly activate the screen saver if activate is true otherwise forcibly deactivate it.

Implements PlatformScreen.

◆ setClipboard()

bool OSXScreen::setClipboard	(	ClipboardID	id,
		const IClipboard *	)

overridevirtual

Set clipboard.

Set the contents of the system clipboard indicated by id.

Implements PlatformScreen.

◆ setOptions()

void OSXScreen::setOptions ( const OptionsList & options )

overridevirtual

Notify of options changes.

Set options to given values. Ignore unknown options and don't modify options that aren't given in options.

Implements PlatformScreen.

◆ setSequenceNumber()

void OSXScreen::setSequenceNumber ( uint32_t )

overridevirtual

Set clipboard sequence number.

Sets the sequence number to use in subsequent clipboard events.

Implements PlatformScreen.

◆ unregisterHotKey()

void OSXScreen::unregisterHotKey ( uint32_t id )

overridevirtual

Unregister a system hotkey.

Unregisters a previously registered hot key.

Implements PlatformScreen.

◆ updateButtons()

void OSXScreen::updateButtons ( )

overrideprotectedvirtual

Update mouse buttons.

Subclasses must implement this method to update their internal mouse button mapping and, if desired, state tracking.

Implements PlatformScreen.

◆ waitForCarbonLoop()

void OSXScreen::waitForCarbonLoop ( ) const

◆ warpCursor()

void OSXScreen::warpCursor	(	int32_t	x,
		int32_t	y )

overridevirtual

Warp cursor.

Warp the cursor to the absolute coordinates x,y. Also discard input events up to and including the warp before returning.

Implements PlatformScreen.

The documentation for this class was generated from the following files:

src/lib/platform/OSXScreen.h
src/lib/platform/OSXScreen.mm

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ OSXScreen()

◆ ~OSXScreen()

Member Function Documentation

◆ activeSides()

◆ canLeave()

◆ checkClipboards()

◆ closeScreensaver()

◆ disable()

◆ enable()

◆ enter()

◆ fakeInputBegin()

◆ fakeInputEnd()

◆ fakeMouseButton()

◆ fakeMouseMove()

◆ fakeMouseRelativeMove()

◆ fakeMouseWheel()

◆ getClipboard()

◆ getCursorCenter()

◆ getCursorPos()

◆ getEvents()

◆ getEventTarget()

◆ getJumpZoneSize()

◆ getKeyState()

◆ getSecureInputApp()

◆ getShape()

◆ handleSystemEvent()

◆ isAnyMouseButtonDown()

◆ isPrimary()

◆ leave()

◆ openScreensaver()

◆ reconfigure()

◆ registerHotKey()

◆ resetOptions()

◆ screensaver()

◆ setClipboard()

◆ setOptions()

◆ setSequenceNumber()

◆ unregisterHotKey()

◆ updateButtons()

◆ waitForCarbonLoop()

◆ warpCursor()
