ISecondaryScreen Class Reference

Secondary screen interface. More...

#include <ISecondaryScreen.h>

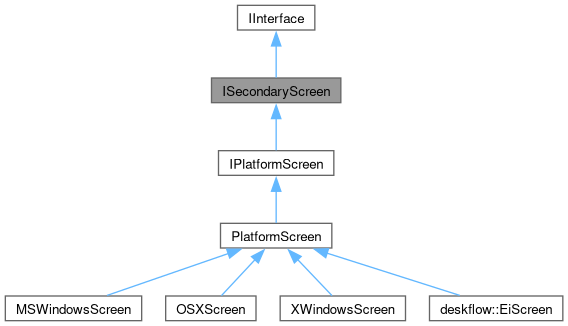

Inheritance diagram for ISecondaryScreen:

Public Member Functions
	ISecondaryScreen ()
virtual	~ISecondaryScreen ()=default

accessors
virtual void	fakeMouseButton (ButtonID id, bool press)=0
	Fake mouse press/release.
virtual void	fakeMouseMove (int32_t x, int32_t y)=0
	Fake mouse move.
virtual void	fakeMouseRelativeMove (int32_t dx, int32_t dy) const =0
	Fake mouse move.
virtual void	fakeMouseWheel (ScrollDelta delta) const =0
	Synthesize a mouse wheel event of amount This Implmentation for this method should call applyScrollModifier before sending the final delta to the system.
ScrollDelta	applyScrollModifier (ScrollDelta delta) const
	Applies any scroll modfifers to the provided delta, This should only be done inside the subclasses fakeMouseWheel impl.

Detailed Description

Secondary screen interface.

This interface defines the methods common to all platform dependent secondary screen implementations.

Constructor & Destructor Documentation

ISecondaryScreen()

ISecondaryScreen::ISecondaryScreen ( )

inline

~ISecondaryScreen()

virtual ISecondaryScreen::~ISecondaryScreen ( )

virtualdefault

Member Function Documentation

applyScrollModifier()

ScrollDelta ISecondaryScreen::applyScrollModifier ( ScrollDelta delta ) const

inline

Applies any scroll modfifers to the provided delta, This should only be done inside the subclasses fakeMouseWheel impl.

Parameters

delta

a ScrollDelta to be modified

Returns

the delta with inversion and scale applied

fakeMouseButton()

virtual void ISecondaryScreen::fakeMouseButton ( ButtonID id, bool press )

pure virtual

Fake mouse press/release.

Synthesize a press or release of mouse button id.

Implemented in deskflow::EiScreen, MSWindowsScreen, OSXScreen, PlatformScreen, and XWindowsScreen.

fakeMouseMove()

virtual void ISecondaryScreen::fakeMouseMove ( int32_t x, int32_t y )

pure virtual

Fake mouse move.

Synthesize a mouse move to the absolute coordinates x,y.

Implemented in MSWindowsScreen, OSXScreen, PlatformScreen, and XWindowsScreen.

fakeMouseRelativeMove()

virtual void ISecondaryScreen::fakeMouseRelativeMove ( int32_t dx, int32_t dy ) const

pure virtual

Fake mouse move.

Synthesize a mouse move to the relative coordinates dx,dy.

Implemented in MSWindowsScreen, OSXScreen, PlatformScreen, and XWindowsScreen.

fakeMouseWheel()

virtual void ISecondaryScreen::fakeMouseWheel ( ScrollDelta delta ) const

pure virtual

Synthesize a mouse wheel event of amount This Implmentation for this method should call applyScrollModifier before sending the final delta to the system.

Parameters

delta

the raw delta to fake

Implemented in deskflow::EiScreen, MSWindowsScreen, OSXScreen, PlatformScreen, and XWindowsScreen.

---

The documentation for this class was generated from the following file:

• src/lib/deskflow/ISecondaryScreen.h
