PrimaryClient Class Reference

Primary screen as pseudo-client. More...

#include <PrimaryClient.h>

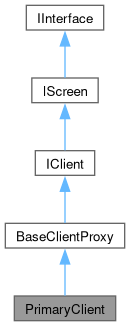

Inheritance diagram for PrimaryClient:

Collaboration diagram for PrimaryClient:

Public Member Functions
	PrimaryClient (const std::string &name, deskflow::Screen *screen)
	~PrimaryClient () override=default
manipulators
virtual void	reconfigure (uint32_t activeSides)
	Update configuration.
virtual uint32_t	registerHotKey (KeyID key, KeyModifierMask mask)
	Register a system hotkey.
virtual void	unregisterHotKey (uint32_t id)
	Unregister a system hotkey.
void	fakeInputBegin ()
	Prepare to synthesize input on primary screen.
void	fakeInputEnd ()
	Done synthesizing input on primary screen.
Public Member Functions inherited from BaseClientProxy
	BaseClientProxy (const std::string &name)
	~BaseClientProxy () override=default
void	setJumpCursorPos (int32_t x, int32_t y)
	Save cursor position.
void	getJumpCursorPos (int32_t &x, int32_t &y) const
	Get cursor position.
std::string	getName () const override
	Get client name.
Public Member Functions inherited from IClient
Public Member Functions inherited from IScreen
Public Member Functions inherited from IInterface
virtual	~IInterface ()=default
	Interface destructor does nothing.

accessors
int32_t	getJumpZoneSize () const
	Get jump zone size.
void	getCursorCenter (int32_t &x, int32_t &y) const
	Get cursor center position.
virtual KeyModifierMask	getToggleMask () const
	Get toggle key state.
bool	isLockedToScreen () const
	Get screen lock state.
virtual void	enable ()
virtual void	disable ()
void *	getEventTarget () const override
	Get event target.
bool	getClipboard (ClipboardID id, IClipboard *) const override
	Get clipboard.
void	getShape (int32_t &x, int32_t &y, int32_t &width, int32_t &height) const override
	Get screen shape.
void	getCursorPos (int32_t &x, int32_t &y) const override
	Get cursor position.
void	enter (int32_t xAbs, int32_t yAbs, uint32_t seqNum, KeyModifierMask mask, bool forScreensaver) override
	Enter screen.
bool	leave () override
	Leave screen.
void	setClipboard (ClipboardID, const IClipboard *) override
	Set clipboard.
void	grabClipboard (ClipboardID) override
	Grab clipboard.
void	setClipboardDirty (ClipboardID, bool) override
	Mark clipboard dirty.
void	keyDown (KeyID, KeyModifierMask, KeyButton, const std::string &) override
	Notify of key press.
void	keyRepeat (KeyID, KeyModifierMask, int32_t count, KeyButton, const std::string &) override
	Notify of key repeat.
void	keyUp (KeyID, KeyModifierMask, KeyButton) override
	Notify of key release.
void	mouseDown (ButtonID) override
	Notify of mouse press.
void	mouseUp (ButtonID) override
	Notify of mouse release.
void	mouseMove (int32_t xAbs, int32_t yAbs) override
	Notify of mouse motion.
void	mouseRelativeMove (int32_t xRel, int32_t yRel) override
	Notify of mouse motion.
void	mouseWheel (int32_t xDelta, int32_t yDelta) override
	Notify of mouse wheel motion.
void	screensaver (bool activate) override
	Notify of screen saver change.
void	resetOptions () override
	Notify of options changes.
void	setOptions (const OptionsList &options) override
	Notify of options changes.
void	sendDragInfo (uint32_t fileCount, const char *info, size_t size) override
void	fileChunkSending (uint8_t mark, char *data, size_t dataSize) override
std::string	getSecureInputApp () const override
void	secureInputNotification (const std::string &app) const override
deskflow::IStream *	getStream () const override
bool	isPrimary () const override
	Get cursor position.

Detailed Description

Primary screen as pseudo-client.

The primary screen does not have a client associated with it. This class provides a pseudo-client to allow the primary screen to be treated as if it was a client.

Constructor & Destructor Documentation

PrimaryClient()

PrimaryClient::PrimaryClient	(	const std::string &	name,
		deskflow::Screen *	screen )

name is the name of the server and screen is primary screen.

~PrimaryClient()

PrimaryClient::~PrimaryClient ( )

overridedefault

Member Function Documentation

disable()

void PrimaryClient::disable ( )

virtual

enable()

void PrimaryClient::enable ( )

virtual

enter()

void PrimaryClient::enter ( int32_t xAbs, int32_t yAbs, uint32_t seqNum, KeyModifierMask mask, bool forScreensaver )

overridevirtual

Enter screen.

Enter the screen. The cursor should be warped to xAbs,yAbs. mask is the expected toggle button state and the client should update its state to match. forScreensaver is true iff the screen is being entered because the screen saver is starting. Subsequent clipboard events should report seqNum.

Implements BaseClientProxy.

fakeInputBegin()

void PrimaryClient::fakeInputBegin

(

)

Prepare to synthesize input on primary screen.

Prepares the primary screen to receive synthesized input. We do not want to receive this synthesized input as user input so this method ensures that we ignore it. Calls to fakeInputBegin() and fakeInputEnd() may be nested; only the outermost have an effect.

fakeInputEnd()

void PrimaryClient::fakeInputEnd

(

)

Done synthesizing input on primary screen.

Undoes whatever fakeInputBegin() did.

fileChunkSending()

void PrimaryClient::fileChunkSending ( uint8_t mark, char * data, size_t dataSize )

overridevirtual

Implements BaseClientProxy.

getClipboard()

bool PrimaryClient::getClipboard ( ClipboardID id, IClipboard *  ) const

overridevirtual

Get clipboard.

Save the contents of the clipboard indicated by id and return true iff successful.

Implements BaseClientProxy.

getCursorCenter()

void PrimaryClient::getCursorCenter	(	int32_t &	x,
		int32_t &	y ) const

Get cursor center position.

Return the cursor center position which is where we park the cursor to compute cursor motion deltas and should be far from the edges of the screen, typically the center.

getCursorPos()

void PrimaryClient::getCursorPos ( int32_t & x, int32_t & y ) const

overridevirtual

Get cursor position.

Return the current position of the cursor in x and y.

Implements BaseClientProxy.

getEventTarget()

void * PrimaryClient::getEventTarget ( ) const

overridevirtual

Get event target.

Returns the target used for events created by this object.

Implements BaseClientProxy.

getJumpZoneSize()

int32_t PrimaryClient::getJumpZoneSize

(

)

const

Get jump zone size.

Return the jump zone size, the size of the regions on the edges of the screen that cause the cursor to jump to another screen.

getSecureInputApp()

std::string PrimaryClient::getSecureInputApp ( ) const

overridevirtual

Implements BaseClientProxy.

getShape()

void PrimaryClient::getShape ( int32_t & x, int32_t & y, int32_t & width, int32_t & height ) const

overridevirtual

Get screen shape.

Return the position of the upper-left corner of the screen in x and y and the size of the screen in width and height.

Implements BaseClientProxy.

getStream()

deskflow::IStream * PrimaryClient::getStream ( ) const

inlineoverridevirtual

Implements BaseClientProxy.

getToggleMask()

KeyModifierMask PrimaryClient::getToggleMask ( ) const

virtual

Get toggle key state.

Returns the primary screen's current toggle modifier key state.

grabClipboard()

void PrimaryClient::grabClipboard ( ClipboardID )

overridevirtual

Grab clipboard.

Grab (i.e. take ownership of) the client's clipboard. Since this is called when another client takes ownership of the clipboard it implies that the client's clipboard is out of date.

Implements BaseClientProxy.

isLockedToScreen()

bool PrimaryClient::isLockedToScreen

(

)

const

Get screen lock state.

Returns true if the user is locked to the screen.

isPrimary()

bool PrimaryClient::isPrimary ( ) const

inlineoverridevirtual

Get cursor position.

Return if this proxy is for client or primary.

Reimplemented from BaseClientProxy.

keyDown()

void PrimaryClient::keyDown ( KeyID id, KeyModifierMask , KeyButton , const std::string &  )

overridevirtual

Notify of key press.

Synthesize key events to generate a press of key id. If possible match the given modifier mask. The KeyButton identifies the physical key on the server that generated this key down. The client must ensure that a key up or key repeat that uses the same KeyButton will synthesize an up or repeat for the same client key synthesized by keyDown().

Implements BaseClientProxy.

keyRepeat()

void PrimaryClient::keyRepeat ( KeyID id, KeyModifierMask , int32_t count, KeyButton , const std::string & lang )

overridevirtual

Notify of key repeat.

Synthesize key events to generate a press and release of key id count times. If possible match the given modifier mask.

Implements BaseClientProxy.

keyUp()

void PrimaryClient::keyUp ( KeyID id, KeyModifierMask , KeyButton  )

overridevirtual

Notify of key release.

Synthesize key events to generate a release of key id. If possible match the given modifier mask.

Implements BaseClientProxy.

leave()

bool PrimaryClient::leave ( )

overridevirtual

Leave screen.

Leave the screen. Return false iff the user may not leave the client's screen (because, for example, a button is down).

Implements BaseClientProxy.

mouseDown()

void PrimaryClient::mouseDown ( ButtonID id )

overridevirtual

Notify of mouse press.

Synthesize mouse events to generate a press of mouse button id.

Implements BaseClientProxy.

mouseMove()

void PrimaryClient::mouseMove ( int32_t xAbs, int32_t yAbs )

overridevirtual

Notify of mouse motion.

Synthesize mouse events to generate mouse motion to the absolute screen position xAbs,yAbs.

Implements BaseClientProxy.

mouseRelativeMove()

void PrimaryClient::mouseRelativeMove ( int32_t xRel, int32_t yRel )

overridevirtual

Notify of mouse motion.

Synthesize mouse events to generate mouse motion by the relative amount xRel,yRel.

Implements BaseClientProxy.

mouseUp()

void PrimaryClient::mouseUp ( ButtonID id )

overridevirtual

Notify of mouse release.

Synthesize mouse events to generate a release of mouse button id.

Implements BaseClientProxy.

mouseWheel()

void PrimaryClient::mouseWheel ( int32_t xDelta, int32_t yDelta )

overridevirtual

Notify of mouse wheel motion.

Synthesize mouse events to generate mouse wheel motion of xDelta and yDelta. Deltas are positive for motion away from the user or to the right and negative for motion towards the user or to the left. Each wheel click should generate a delta of +/-120.

Implements BaseClientProxy.

reconfigure()

void PrimaryClient::reconfigure ( uint32_t activeSides )

virtual

Update configuration.

Handles reconfiguration of jump zones.

registerHotKey()

uint32_t PrimaryClient::registerHotKey ( KeyID key, KeyModifierMask mask )

virtual

Register a system hotkey.

Registers a system-wide hotkey for key key with modifiers mask. Returns an id used to unregister the hotkey.

resetOptions()

void PrimaryClient::resetOptions ( )

overridevirtual

Notify of options changes.

Reset all options to their default values.

Implements BaseClientProxy.

screensaver()

void PrimaryClient::screensaver ( bool activate )

overridevirtual

Notify of screen saver change.

Implements BaseClientProxy.

secureInputNotification()

void PrimaryClient::secureInputNotification ( const std::string & app ) const

overridevirtual

Implements BaseClientProxy.

sendDragInfo()

void PrimaryClient::sendDragInfo ( uint32_t fileCount, const char * info, size_t size )

overridevirtual

Implements BaseClientProxy.

setClipboard()

void PrimaryClient::setClipboard ( ClipboardID , const IClipboard *  )

overridevirtual

Set clipboard.

Update the client's clipboard. This implies that the client's clipboard is now up to date. If the client's clipboard was already known to be up to date then this may do nothing. data has marshalled clipboard data.

Implements BaseClientProxy.

setClipboardDirty()

void PrimaryClient::setClipboardDirty ( ClipboardID , bool dirty )

overridevirtual

Mark clipboard dirty.

Mark the client's clipboard as dirty (out of date) or clean (up to date).

Implements BaseClientProxy.

setOptions()

void PrimaryClient::setOptions ( const OptionsList & options )

overridevirtual

Notify of options changes.

Set options to given values. Ignore unknown options and don't modify our options that aren't given in options.

Implements BaseClientProxy.

unregisterHotKey()

void PrimaryClient::unregisterHotKey ( uint32_t id )

virtual

Unregister a system hotkey.

Unregisters a previously registered hot key.

---

The documentation for this class was generated from the following files:

• src/lib/server/PrimaryClient.h
• src/lib/server/PrimaryClient.cpp
