Generic proxy for client or primary. More...

#include <BaseClientProxy.h>

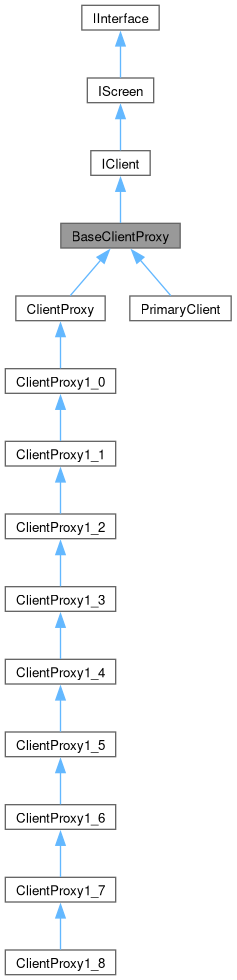

Inheritance diagram for BaseClientProxy:

[legend]

Collaboration diagram for BaseClientProxy:

[legend]

Public Member Functions
	BaseClientProxy (const std::string &name)
	~BaseClientProxy () override=default
manipulators
void	setJumpCursorPos (int32_t x, int32_t y)
	Save cursor position.
Public Member Functions inherited from IClient
Public Member Functions inherited from IScreen
Public Member Functions inherited from IInterface
virtual	~IInterface ()=default
	Interface destructor does nothing.

accessors
void	getJumpCursorPos (int32_t &x, int32_t &y) const
	Get cursor position.
virtual bool	isPrimary () const
	Get cursor position.
void *	getEventTarget () const override=0
	Get event target.
bool	getClipboard (ClipboardID id, IClipboard *) const override=0
	Get clipboard.
void	getShape (int32_t &x, int32_t &y, int32_t &width, int32_t &height) const override=0
	Get screen shape.
void	getCursorPos (int32_t &x, int32_t &y) const override=0
	Get cursor position.
void	enter (int32_t xAbs, int32_t yAbs, uint32_t seqNum, KeyModifierMask mask, bool forScreensaver) override=0
	Enter screen.
bool	leave () override=0
	Leave screen.
void	setClipboard (ClipboardID, const IClipboard *) override=0
	Set clipboard.
void	grabClipboard (ClipboardID) override=0
	Grab clipboard.
void	setClipboardDirty (ClipboardID, bool) override=0
	Mark clipboard dirty.
void	keyDown (KeyID, KeyModifierMask, KeyButton, const std::string &) override=0
	Notify of key press.
void	keyRepeat (KeyID, KeyModifierMask, int32_t count, KeyButton, const std::string &lang) override=0
	Notify of key repeat.
void	keyUp (KeyID, KeyModifierMask, KeyButton) override=0
	Notify of key release.
void	mouseDown (ButtonID) override=0
	Notify of mouse press.
void	mouseUp (ButtonID) override=0
	Notify of mouse release.
void	mouseMove (int32_t xAbs, int32_t yAbs) override=0
	Notify of mouse motion.
void	mouseRelativeMove (int32_t xRel, int32_t yRel) override=0
	Notify of mouse motion.
void	mouseWheel (int32_t xDelta, int32_t yDelta) override=0
	Notify of mouse wheel motion.
void	screensaver (bool activate) override=0
	Notify of screen saver change.
void	resetOptions () override=0
	Notify of options changes.
void	setOptions (const OptionsList &options) override=0
	Notify of options changes.
virtual void	sendDragInfo (uint32_t fileCount, const char *info, size_t size)=0
virtual void	fileChunkSending (uint8_t mark, char *data, size_t dataSize)=0
virtual std::string	getSecureInputApp () const =0
virtual void	secureInputNotification (const std::string &app) const =0
std::string	getName () const override
	Get client name.
virtual deskflow::IStream *	getStream () const =0

Detailed Description

Generic proxy for client or primary.

Constructor & Destructor Documentation

◆ BaseClientProxy()

BaseClientProxy::BaseClientProxy ( const std::string & name )

explicit

name is the name of the client.

◆ ~BaseClientProxy()

BaseClientProxy::~BaseClientProxy ( )

overridedefault

Member Function Documentation

◆ enter()

void BaseClientProxy::enter	(	int32_t	xAbs,
		int32_t	yAbs,
		uint32_t	seqNum,
		KeyModifierMask	mask,
		bool	forScreensaver )

overridepure virtual

Enter screen.

Enter the screen. The cursor should be warped to xAbs,yAbs. mask is the expected toggle button state and the client should update its state to match. forScreensaver is true iff the screen is being entered because the screen saver is starting. Subsequent clipboard events should report seqNum.

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy, and PrimaryClient.

◆ fileChunkSending()

virtual void BaseClientProxy::fileChunkSending	(	uint8_t	mark,
		char *	data,
		size_t	dataSize )

pure virtual

Implemented in ClientProxy1_0, ClientProxy1_5, ClientProxy, and PrimaryClient.

◆ getClipboard()

bool BaseClientProxy::getClipboard	(	ClipboardID	id,
		IClipboard *	) const

overridepure virtual

Get clipboard.

Save the contents of the clipboard indicated by id and return true iff successful.

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy, and PrimaryClient.

◆ getCursorPos()

void BaseClientProxy::getCursorPos	(	int32_t &	x,
		int32_t &	y ) const

overridepure virtual

Get cursor position.

Return the current position of the cursor in x and y.

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy, and PrimaryClient.

◆ getEventTarget()

void * BaseClientProxy::getEventTarget ( ) const

overridepure virtual

Get event target.

Returns the target used for events created by this object.

Implements IClient.

Implemented in ClientProxy, and PrimaryClient.

◆ getJumpCursorPos()

void BaseClientProxy::getJumpCursorPos	(	int32_t &	x,
		int32_t &	y ) const

Get cursor position.

Get the position of the cursor when last jumping from client.

◆ getName()

std::string BaseClientProxy::getName ( ) const

overridevirtual

Get client name.

Return the client's name.

Implements IClient.

◆ getSecureInputApp()

virtual std::string BaseClientProxy::getSecureInputApp ( ) const

pure virtual

Implemented in ClientProxy1_0, and PrimaryClient.

◆ getShape()

void BaseClientProxy::getShape	(	int32_t &	x,
		int32_t &	y,
		int32_t &	width,
		int32_t &	height ) const

overridepure virtual

Get screen shape.

Return the position of the upper-left corner of the screen in x and y and the size of the screen in width and height.

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy, and PrimaryClient.

◆ getStream()

virtual deskflow::IStream * BaseClientProxy::getStream ( ) const

pure virtual

Implemented in ClientProxy, and PrimaryClient.

◆ grabClipboard()

void BaseClientProxy::grabClipboard ( ClipboardID )

overridepure virtual

Grab clipboard.

Grab (i.e. take ownership of) the client's clipboard. Since this is called when another client takes ownership of the clipboard it implies that the client's clipboard is out of date.

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy, and PrimaryClient.

◆ isPrimary()

virtual bool BaseClientProxy::isPrimary ( ) const

inlinevirtual

Get cursor position.

Return if this proxy is for client or primary.

Reimplemented in PrimaryClient.

◆ keyDown()

void BaseClientProxy::keyDown	(	KeyID	id,
		KeyModifierMask	,
		KeyButton	,
		const std::string &	)

overridepure virtual

Notify of key press.

Synthesize key events to generate a press of key id. If possible match the given modifier mask. The KeyButton identifies the physical key on the server that generated this key down. The client must ensure that a key up or key repeat that uses the same KeyButton will synthesize an up or repeat for the same client key synthesized by keyDown().

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy1_1, ClientProxy1_4, ClientProxy1_8, ClientProxy, and PrimaryClient.

◆ keyRepeat()

void BaseClientProxy::keyRepeat	(	KeyID	id,
		KeyModifierMask	,
		int32_t	count,
		KeyButton	,
		const std::string &	lang )

overridepure virtual

Notify of key repeat.

Synthesize key events to generate a press and release of key id count times. If possible match the given modifier mask.

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy1_1, ClientProxy1_4, ClientProxy, and PrimaryClient.

◆ keyUp()

void BaseClientProxy::keyUp	(	KeyID	id,
		KeyModifierMask	,
		KeyButton	)

overridepure virtual

Notify of key release.

Synthesize key events to generate a release of key id. If possible match the given modifier mask.

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy1_1, ClientProxy1_4, ClientProxy, and PrimaryClient.

◆ leave()

bool BaseClientProxy::leave ( )

overridepure virtual

Leave screen.

Leave the screen. Return false iff the user may not leave the client's screen (because, for example, a button is down).

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy, and PrimaryClient.

◆ mouseDown()

void BaseClientProxy::mouseDown ( ButtonID id )

overridepure virtual

Notify of mouse press.

Synthesize mouse events to generate a press of mouse button id.

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy, and PrimaryClient.

◆ mouseMove()

void BaseClientProxy::mouseMove	(	int32_t	xAbs,
		int32_t	yAbs )

overridepure virtual

Notify of mouse motion.

Synthesize mouse events to generate mouse motion to the absolute screen position xAbs,yAbs.

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy, and PrimaryClient.

◆ mouseRelativeMove()

void BaseClientProxy::mouseRelativeMove	(	int32_t	xRel,
		int32_t	yRel )

overridepure virtual

Notify of mouse motion.

Synthesize mouse events to generate mouse motion by the relative amount xRel,yRel.

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy1_2, ClientProxy, and PrimaryClient.

◆ mouseUp()

void BaseClientProxy::mouseUp ( ButtonID id )

overridepure virtual

Notify of mouse release.

Synthesize mouse events to generate a release of mouse button id.

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy, and PrimaryClient.

◆ mouseWheel()

void BaseClientProxy::mouseWheel	(	int32_t	xDelta,
		int32_t	yDelta )

overridepure virtual

Notify of mouse wheel motion.

Synthesize mouse events to generate mouse wheel motion of xDelta and yDelta. Deltas are positive for motion away from the user or to the right and negative for motion towards the user or to the left. Each wheel click should generate a delta of +/-120.

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy1_3, ClientProxy, and PrimaryClient.

◆ resetOptions()

void BaseClientProxy::resetOptions ( )

overridepure virtual

Notify of options changes.

Reset all options to their default values.

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy, and PrimaryClient.

◆ screensaver()

void BaseClientProxy::screensaver ( bool activate )

overridepure virtual

Notify of screen saver change.

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy, and PrimaryClient.

◆ secureInputNotification()

virtual void BaseClientProxy::secureInputNotification ( const std::string & app ) const

pure virtual

Implemented in ClientProxy1_0, ClientProxy1_7, ClientProxy, and PrimaryClient.

◆ sendDragInfo()

virtual void BaseClientProxy::sendDragInfo	(	uint32_t	fileCount,
		const char *	info,
		size_t	size )

pure virtual

Implemented in ClientProxy1_0, ClientProxy1_5, ClientProxy, and PrimaryClient.

◆ setClipboard()

void BaseClientProxy::setClipboard	(	ClipboardID	,
		const IClipboard *	)

overridepure virtual

Set clipboard.

Update the client's clipboard. This implies that the client's clipboard is now up to date. If the client's clipboard was already known to be up to date then this may do nothing. data has marshalled clipboard data.

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy1_6, ClientProxy, and PrimaryClient.

◆ setClipboardDirty()

void BaseClientProxy::setClipboardDirty	(	ClipboardID	,
		bool	dirty )

overridepure virtual

Mark clipboard dirty.

Mark the client's clipboard as dirty (out of date) or clean (up to date).

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy, and PrimaryClient.

◆ setJumpCursorPos()

void BaseClientProxy::setJumpCursorPos	(	int32_t	x,
		int32_t	y )

Save cursor position.

Save the position of the cursor when jumping from client.

◆ setOptions()

void BaseClientProxy::setOptions ( const OptionsList & options )

overridepure virtual

Notify of options changes.

Set options to given values. Ignore unknown options and don't modify our options that aren't given in options.

Implements IClient.

Implemented in ClientProxy1_0, ClientProxy, and PrimaryClient.

The documentation for this class was generated from the following files:

src/lib/server/BaseClientProxy.h
src/lib/server/BaseClientProxy.cpp
