SecureSocket Class Reference

Secure socket. More...

#include <SecureSocket.h>

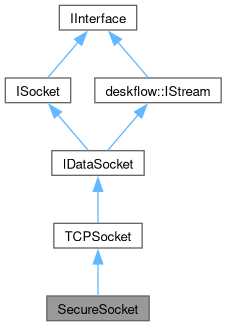

Inheritance diagram for SecureSocket:

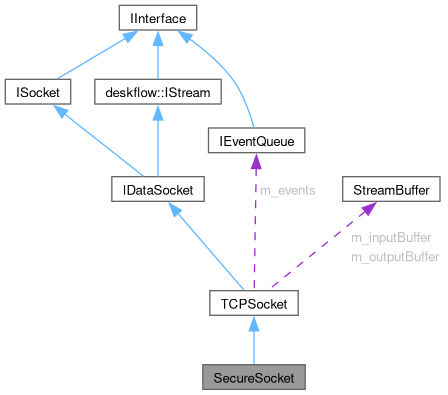

Collaboration diagram for SecureSocket:

Public Member Functions
	SecureSocket (IEventQueue *events, SocketMultiplexer *socketMultiplexer, IArchNetwork::AddressFamily family, SecurityLevel securityLevel=SecurityLevel::Encrypted)
	SecureSocket (IEventQueue *events, SocketMultiplexer *socketMultiplexer, ArchSocket socket, SecurityLevel securityLevel=SecurityLevel::Encrypted)
	SecureSocket (SecureSocket const &)=delete
	SecureSocket (SecureSocket &&)=delete
	~SecureSocket () override
SecureSocket &	operator= (SecureSocket const &)=delete
SecureSocket &	operator= (SecureSocket &&)=delete
void	close () override
	Close socket.
void	connect (const NetworkAddress &) override
	Connect socket.
ISocketMultiplexerJob *	newJob () override
bool	isFatal () const override
void	isFatal (bool b)
bool	isSecureReady () const
void	secureConnect ()
void	secureAccept ()
int	secureRead (void *buffer, int size, int &read)
int	secureWrite (const void *buffer, int size, int &wrote)
JobResult	doRead () override
JobResult	doWrite () override
void	initSsl (bool server)
bool	loadCertificates (const std::string &CertFile)
Public Member Functions inherited from TCPSocket
	TCPSocket (IEventQueue *events, SocketMultiplexer *socketMultiplexer, IArchNetwork::AddressFamily family=IArchNetwork::AddressFamily::INet)
	TCPSocket (IEventQueue *events, SocketMultiplexer *socketMultiplexer, ArchSocket socket)
	TCPSocket (TCPSocket const &)=delete
	TCPSocket (TCPSocket &&)=delete
	~TCPSocket () override
TCPSocket &	operator= (TCPSocket const &)=delete
TCPSocket &	operator= (TCPSocket &&)=delete
void	bind (const NetworkAddress &) override
	Bind socket to address.
void	close () override
	Close socket.
void *	getEventTarget () const override
	Get event target.
uint32_t	read (void *buffer, uint32_t n) override
	Read from stream.
void	write (const void *buffer, uint32_t n) override
	Write to stream.
void	flush () override
	Flush the stream.
void	shutdownInput () override
	Shutdown input.
void	shutdownOutput () override
	Shutdown output.
bool	isReady () const override
	Test if read() will succeed.
bool	isFatal () const override
uint32_t	getSize () const override
	Get bytes available to read.
void	connect (const NetworkAddress &) override
	Connect socket.
Public Member Functions inherited from IDataSocket
	IDataSocket (const IEventQueue *events)
Public Member Functions inherited from ISocket
Public Member Functions inherited from IInterface
virtual	~IInterface ()=default
	Interface destructor does nothing.
Public Member Functions inherited from deskflow::IStream
	IStream ()=default

Additional Inherited Members
Protected Types inherited from TCPSocket
enum class	JobResult { Break = -1 , Retry , New }
Protected Member Functions inherited from TCPSocket
ArchSocket	getSocket ()
IEventQueue *	getEvents ()
void	setJob (ISocketMultiplexerJob *)
bool	isConnected () const
void	setConnected (bool connected)
bool	isReadable () const
void	setReadable (bool readable)
bool	isWritable () const
void	setWritable (bool canWrite)
Mutex &	getMutex ()
void	sendEvent (EventTypes)
void	discardWrittenData (int bytesWrote)
Protected Attributes inherited from TCPSocket
IEventQueue *	m_events
StreamBuffer	m_inputBuffer
StreamBuffer	m_outputBuffer

Detailed Description

Secure socket.

A secure socket using SSL.

Constructor & Destructor Documentation

SecureSocket() [1/4]

SecureSocket::SecureSocket	(	IEventQueue *	events,
		SocketMultiplexer *	socketMultiplexer,
		IArchNetwork::AddressFamily	family,
		SecurityLevel	securityLevel = SecurityLevel::Encrypted )

SecureSocket() [2/4]

SecureSocket::SecureSocket	(	IEventQueue *	events,
		SocketMultiplexer *	socketMultiplexer,
		ArchSocket	socket,
		SecurityLevel	securityLevel = SecurityLevel::Encrypted )

SecureSocket() [3/4]

SecureSocket::SecureSocket ( SecureSocket const & )

delete

SecureSocket() [4/4]

SecureSocket::SecureSocket ( SecureSocket && )

delete

~SecureSocket()

SecureSocket::~SecureSocket ( )

override

Member Function Documentation

close()

void SecureSocket::close ( )

overridevirtual

Close socket.

Closes the socket. This should flush the output stream.

Reimplemented from IDataSocket.

connect()

void SecureSocket::connect ( const NetworkAddress & )

overridevirtual

Connect socket.

Attempt to connect to a remote endpoint. This returns immediately and sends a connected event when successful or a connection failed event when it fails. The stream acts as if shutdown for input and output until the stream connects.

Implements IDataSocket.

doRead()

TCPSocket::JobResult SecureSocket::doRead ( )

overridevirtual

Reimplemented from TCPSocket.

doWrite()

TCPSocket::JobResult SecureSocket::doWrite ( )

overridevirtual

Reimplemented from TCPSocket.

initSsl()

void SecureSocket::initSsl

(

bool

server

)

isFatal() [1/2]

bool SecureSocket::isFatal ( ) const

inlineoverridevirtual

Implements IDataSocket.

isFatal() [2/2]

void SecureSocket::isFatal ( bool b )

inline

isSecureReady()

bool SecureSocket::isSecureReady

(

)

const

loadCertificates()

bool SecureSocket::loadCertificates

(

const std::string &

CertFile

)

newJob()

ISocketMultiplexerJob * SecureSocket::newJob ( )

overridevirtual

Reimplemented from TCPSocket.

operator=() [1/2]

SecureSocket & SecureSocket::operator= ( SecureSocket && )

delete

operator=() [2/2]

SecureSocket & SecureSocket::operator= ( SecureSocket const & )

delete

secureAccept()

void SecureSocket::secureAccept

(

)

secureConnect()

void SecureSocket::secureConnect

(

)

secureRead()

int SecureSocket::secureRead	(	void *	buffer,
		int	size,
		int &	read )

secureWrite()

int SecureSocket::secureWrite	(	const void *	buffer,
		int	size,
		int &	wrote )

---

The documentation for this class was generated from the following files:

• src/lib/net/SecureSocket.h
• src/lib/net/SecureSocket.cpp
