TCPSocket Class Reference

TCP data socket. More...

#include <TCPSocket.h>

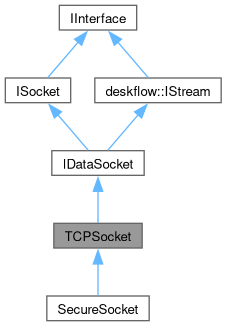

Inheritance diagram for TCPSocket:

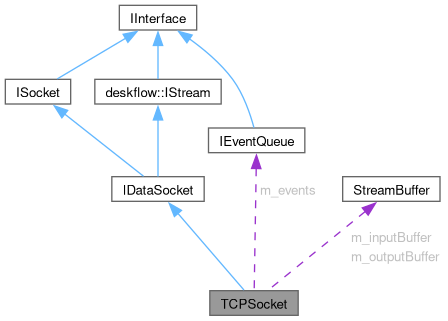

Collaboration diagram for TCPSocket:

Public Member Functions
	TCPSocket (IEventQueue *events, SocketMultiplexer *socketMultiplexer, IArchNetwork::AddressFamily family=IArchNetwork::AddressFamily::INet)
	TCPSocket (IEventQueue *events, SocketMultiplexer *socketMultiplexer, ArchSocket socket)
	TCPSocket (TCPSocket const &)=delete
	TCPSocket (TCPSocket &&)=delete
	~TCPSocket () override
TCPSocket &	operator= (TCPSocket const &)=delete
TCPSocket &	operator= (TCPSocket &&)=delete
void	bind (const NetworkAddress &) override
	Bind socket to address.
void	close () override
	Close socket.
void *	getEventTarget () const override
	Get event target.
uint32_t	read (void *buffer, uint32_t n) override
	Read from stream.
void	write (const void *buffer, uint32_t n) override
	Write to stream.
void	flush () override
	Flush the stream.
void	shutdownInput () override
	Shutdown input.
void	shutdownOutput () override
	Shutdown output.
bool	isReady () const override
	Test if read() will succeed.
bool	isFatal () const override
uint32_t	getSize () const override
	Get bytes available to read.
void	connect (const NetworkAddress &) override
	Connect socket.
virtual ISocketMultiplexerJob *	newJob ()
Public Member Functions inherited from IDataSocket
	IDataSocket (const IEventQueue *events)
Public Member Functions inherited from ISocket
Public Member Functions inherited from IInterface
virtual	~IInterface ()=default
	Interface destructor does nothing.
Public Member Functions inherited from deskflow::IStream
	IStream ()=default

Protected Types
enum class	JobResult { Break = -1 , Retry , New }

Protected Member Functions
ArchSocket	getSocket ()
IEventQueue *	getEvents ()
virtual JobResult	doRead ()
virtual JobResult	doWrite ()
void	setJob (ISocketMultiplexerJob *)
bool	isConnected () const
void	setConnected (bool connected)
bool	isReadable () const
void	setReadable (bool readable)
bool	isWritable () const
void	setWritable (bool canWrite)
Mutex &	getMutex ()
void	sendEvent (EventTypes)
void	discardWrittenData (int bytesWrote)

Protected Attributes
IEventQueue *	m_events
StreamBuffer	m_inputBuffer
StreamBuffer	m_outputBuffer

Detailed Description

TCP data socket.

A data socket using TCP.

Member Enumeration Documentation

JobResult

enum class TCPSocket::JobResult

strongprotected

Enumerator
Break	Break the Job chain.
Retry	Retry the same job.
New	Require a new job.

Constructor & Destructor Documentation

TCPSocket() [1/4]

TCPSocket::TCPSocket	(	IEventQueue *	events,
		SocketMultiplexer *	socketMultiplexer,
		IArchNetwork::AddressFamily	family = IArchNetwork::AddressFamily::INet )

TCPSocket() [2/4]

TCPSocket::TCPSocket	(	IEventQueue *	events,
		SocketMultiplexer *	socketMultiplexer,
		ArchSocket	socket )

TCPSocket() [3/4]

TCPSocket::TCPSocket ( TCPSocket const & )

delete

TCPSocket() [4/4]

TCPSocket::TCPSocket ( TCPSocket && )

delete

~TCPSocket()

TCPSocket::~TCPSocket ( )

override

Member Function Documentation

bind()

void TCPSocket::bind ( const NetworkAddress & )

overridevirtual

Bind socket to address.

Binds the socket to a particular address.

Implements IDataSocket.

close()

void TCPSocket::close ( )

overridevirtual

Close socket.

Closes the socket. This should flush the output stream.

Reimplemented from IDataSocket.

connect()

void TCPSocket::connect ( const NetworkAddress & )

overridevirtual

Connect socket.

Attempt to connect to a remote endpoint. This returns immediately and sends a connected event when successful or a connection failed event when it fails. The stream acts as if shutdown for input and output until the stream connects.

Implements IDataSocket.

discardWrittenData()

void TCPSocket::discardWrittenData ( int bytesWrote )

protected

doRead()

TCPSocket::JobResult TCPSocket::doRead ( )

protectedvirtual

Reimplemented in SecureSocket.

doWrite()

TCPSocket::JobResult TCPSocket::doWrite ( )

protectedvirtual

Reimplemented in SecureSocket.

flush()

void TCPSocket::flush ( )

overridevirtual

Flush the stream.

Waits until all buffered data has been written to the stream.

Implements IDataSocket.

getEvents()

IEventQueue * TCPSocket::getEvents ( )

inlineprotected

getEventTarget()

void * TCPSocket::getEventTarget ( ) const

overridevirtual

Get event target.

Returns the event target for events generated by this socket.

Reimplemented from IDataSocket.

getMutex()

Mutex & TCPSocket::getMutex ( )

inlineprotected

getSize()

uint32_t TCPSocket::getSize ( ) const

overridevirtual

Get bytes available to read.

Returns a conservative estimate of the available bytes to read (i.e. a number not greater than the actual number of bytes). Some streams may not be able to determine this and will always return zero.

Implements IDataSocket.

getSocket()

ArchSocket TCPSocket::getSocket ( )

inlineprotected

isConnected()

bool TCPSocket::isConnected ( ) const

inlineprotected

isFatal()

bool TCPSocket::isFatal ( ) const

overridevirtual

Implements IDataSocket.

isReadable()

bool TCPSocket::isReadable ( ) const

inlineprotected

isReady()

bool TCPSocket::isReady ( ) const

overridevirtual

Test if read() will succeed.

Returns true iff an immediate read() will return data. This may or may not be the same as getSize() > 0, depending on the stream type.

Implements IDataSocket.

isWritable()

bool TCPSocket::isWritable ( ) const

inlineprotected

newJob()

ISocketMultiplexerJob * TCPSocket::newJob ( )

virtual

Reimplemented in SecureSocket.

operator=() [1/2]

TCPSocket & TCPSocket::operator= ( TCPSocket && )

delete

operator=() [2/2]

TCPSocket & TCPSocket::operator= ( TCPSocket const & )

delete

read()

uint32_t TCPSocket::read ( void * buffer, uint32_t n )

overridevirtual

Read from stream.

Read up to n bytes into buffer, returning the number read (zero if no data is available or input is shutdown). buffer may be nullptr in which case the data is discarded.

Implements IDataSocket.

sendEvent()

void TCPSocket::sendEvent ( EventTypes type )

protected

setConnected()

void TCPSocket::setConnected ( bool connected )

inlineprotected

setJob()

void TCPSocket::setJob ( ISocketMultiplexerJob * job )

protected

setReadable()

void TCPSocket::setReadable ( bool readable )

inlineprotected

setWritable()

void TCPSocket::setWritable ( bool canWrite )

inlineprotected

shutdownInput()

void TCPSocket::shutdownInput ( )

overridevirtual

Shutdown input.

Shutdown the input side of the stream. Any pending input data is discarded and further reads immediately return 0.

Implements IDataSocket.

shutdownOutput()

void TCPSocket::shutdownOutput ( )

overridevirtual

Shutdown output.

Shutdown the output side of the stream. Any buffered output data is discarded and further writes generate output error events. Use flush() before shutdownOutput() to send buffered output data.

Implements IDataSocket.

write()

void TCPSocket::write ( const void * buffer, uint32_t n )

overridevirtual

Write to stream.

Write n bytes from buffer to the stream. If this can't complete immediately it will block. Data may be buffered in order to return more quickly. A output error event is generated when writing fails.

Implements IDataSocket.

Member Data Documentation

m_events

IEventQueue* TCPSocket::m_events

protected

m_inputBuffer

StreamBuffer TCPSocket::m_inputBuffer

protected

m_outputBuffer

StreamBuffer TCPSocket::m_outputBuffer

protected

---

The documentation for this class was generated from the following files:

• src/lib/net/TCPSocket.h
• src/lib/net/TCPSocket.cpp
