Proxy for client implementing protocol version 1.0. More...

#include <ClientProxy1_0.h>

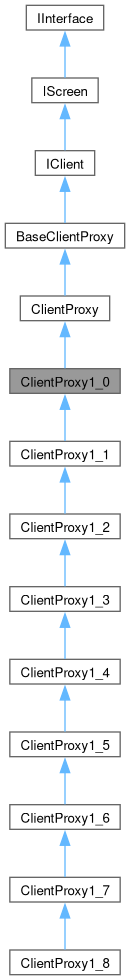

Inheritance diagram for ClientProxy1_0:

[legend]

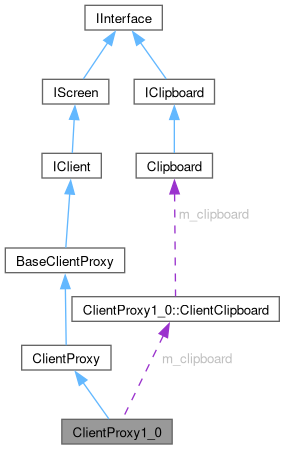

Collaboration diagram for ClientProxy1_0:

[legend]

Classes
struct	ClientClipboard

Public Member Functions
	ClientProxy1_0 (const std::string &name, deskflow::IStream adoptedStream, IEventQueue events)
	ClientProxy1_0 (ClientProxy1_0 const &)=delete
	ClientProxy1_0 (ClientProxy1_0 &&)=delete
	~ClientProxy1_0 () override
ClientProxy1_0 &	operator= (ClientProxy1_0 const &)=delete
ClientProxy1_0 &	operator= (ClientProxy1_0 &&)=delete
bool	getClipboard (ClipboardID id, IClipboard *) const override
	Get clipboard.
void	getShape (int32_t &x, int32_t &y, int32_t &width, int32_t &height) const override
	Get screen shape.
void	getCursorPos (int32_t &x, int32_t &y) const override
	Get cursor position.
void	enter (int32_t xAbs, int32_t yAbs, uint32_t seqNum, KeyModifierMask mask, bool forScreensaver) override
	Enter screen.
bool	leave () override
	Leave screen.
void	setClipboard (ClipboardID, const IClipboard *) override
	Set clipboard.
void	grabClipboard (ClipboardID) override
	Grab clipboard.
void	setClipboardDirty (ClipboardID, bool) override
	Mark clipboard dirty.
void	keyDown (KeyID, KeyModifierMask, KeyButton, const std::string &) override
	Notify of key press.
void	keyRepeat (KeyID, KeyModifierMask, int32_t count, KeyButton, const std::string &) override
	Notify of key repeat.
void	keyUp (KeyID, KeyModifierMask, KeyButton) override
	Notify of key release.
void	mouseDown (ButtonID) override
	Notify of mouse press.
void	mouseUp (ButtonID) override
	Notify of mouse release.
void	mouseMove (int32_t xAbs, int32_t yAbs) override
	Notify of mouse motion.
void	mouseRelativeMove (int32_t xRel, int32_t yRel) override
	Notify of mouse motion.
void	mouseWheel (int32_t xDelta, int32_t yDelta) override
	Notify of mouse wheel motion.
void	screensaver (bool activate) override
	Notify of screen saver change.
void	resetOptions () override
	Notify of options changes.
void	setOptions (const OptionsList &options) override
	Notify of options changes.
void	sendDragInfo (uint32_t fileCount, const char *info, size_t size) override
void	fileChunkSending (uint8_t mark, char *data, size_t dataSize) override
std::string	getSecureInputApp () const override
void	secureInputNotification (const std::string &app) const override
Public Member Functions inherited from ClientProxy
	ClientProxy (const std::string &name, deskflow::IStream *adoptedStream)
	ClientProxy (ClientProxy const &)=delete
	ClientProxy (ClientProxy &&)=delete
	~ClientProxy () override
ClientProxy &	operator= (ClientProxy const &)=delete
ClientProxy &	operator= (ClientProxy &&)=delete
void	close (const char *msg) const
	Disconnect.
deskflow::IStream *	getStream () const override
	Get stream.
void *	getEventTarget () const override
	Get event target.
Public Member Functions inherited from BaseClientProxy
	BaseClientProxy (const std::string &name)
	~BaseClientProxy () override=default
void	setJumpCursorPos (int32_t x, int32_t y)
	Save cursor position.
void	getJumpCursorPos (int32_t &x, int32_t &y) const
	Get cursor position.
virtual bool	isPrimary () const
	Get cursor position.
std::string	getName () const override
	Get client name.
Public Member Functions inherited from IClient
Public Member Functions inherited from IScreen
Public Member Functions inherited from IInterface
virtual	~IInterface ()=default
	Interface destructor does nothing.

Protected Member Functions
virtual bool	parseHandshakeMessage (const uint8_t *code)
virtual bool	parseMessage (const uint8_t *code)
virtual void	resetHeartbeatRate ()
virtual void	setHeartbeatRate (double rate, double alarm)
virtual void	resetHeartbeatTimer ()
virtual void	addHeartbeatTimer ()
virtual void	removeHeartbeatTimer ()
virtual bool	recvClipboard ()

Protected Attributes
ClientClipboard	m_clipboard [kClipboardEnd]

Detailed Description

Proxy for client implementing protocol version 1.0.

Constructor & Destructor Documentation

◆ ClientProxy1_0() [1/3]

ClientProxy1_0::ClientProxy1_0	(	const std::string &	name,
		deskflow::IStream *	adoptedStream,
		IEventQueue *	events )

◆ ClientProxy1_0() [2/3]

ClientProxy1_0::ClientProxy1_0 ( ClientProxy1_0 const & )

delete

◆ ClientProxy1_0() [3/3]

ClientProxy1_0::ClientProxy1_0 ( ClientProxy1_0 && )

delete

◆ ~ClientProxy1_0()

ClientProxy1_0::~ClientProxy1_0 ( )

override

Member Function Documentation

◆ addHeartbeatTimer()

void ClientProxy1_0::addHeartbeatTimer ( )

protectedvirtual

Reimplemented in ClientProxy1_3.

◆ enter()

void ClientProxy1_0::enter	(	int32_t	xAbs,
		int32_t	yAbs,
		uint32_t	seqNum,
		KeyModifierMask	mask,
		bool	forScreensaver )

overridevirtual

Enter screen.

Enter the screen. The cursor should be warped to xAbs,yAbs. mask is the expected toggle button state and the client should update its state to match. forScreensaver is true iff the screen is being entered because the screen saver is starting. Subsequent clipboard events should report seqNum.

Implements ClientProxy.

◆ fileChunkSending()

void ClientProxy1_0::fileChunkSending	(	uint8_t	mark,
		char *	data,
		size_t	dataSize )

overridevirtual

Implements ClientProxy.

Reimplemented in ClientProxy1_5.

◆ getClipboard()

bool ClientProxy1_0::getClipboard	(	ClipboardID	id,
		IClipboard *	) const

overridevirtual

Get clipboard.

Save the contents of the clipboard indicated by id and return true iff successful.

Implements ClientProxy.

◆ getCursorPos()

void ClientProxy1_0::getCursorPos	(	int32_t &	x,
		int32_t &	y ) const

overridevirtual

Get cursor position.

Return the current position of the cursor in x and y.

Implements ClientProxy.

◆ getSecureInputApp()

std::string ClientProxy1_0::getSecureInputApp ( ) const

overridevirtual

Implements BaseClientProxy.

◆ getShape()

void ClientProxy1_0::getShape	(	int32_t &	x,
		int32_t &	y,
		int32_t &	width,
		int32_t &	height ) const

overridevirtual

Get screen shape.

Return the position of the upper-left corner of the screen in x and y and the size of the screen in width and height.

Implements ClientProxy.

◆ grabClipboard()

void ClientProxy1_0::grabClipboard ( ClipboardID )

overridevirtual

Grab clipboard.

Grab (i.e. take ownership of) the client's clipboard. Since this is called when another client takes ownership of the clipboard it implies that the client's clipboard is out of date.

Implements ClientProxy.

◆ keyDown()

void ClientProxy1_0::keyDown	(	KeyID	id,
		KeyModifierMask	,
		KeyButton	,
		const std::string &	)

overridevirtual

Notify of key press.

Synthesize key events to generate a press of key id. If possible match the given modifier mask. The KeyButton identifies the physical key on the server that generated this key down. The client must ensure that a key up or key repeat that uses the same KeyButton will synthesize an up or repeat for the same client key synthesized by keyDown().

Implements ClientProxy.

Reimplemented in ClientProxy1_1, ClientProxy1_4, and ClientProxy1_8.

◆ keyRepeat()

void ClientProxy1_0::keyRepeat	(	KeyID	id,
		KeyModifierMask	,
		int32_t	count,
		KeyButton	,
		const std::string &	lang )

overridevirtual

Notify of key repeat.

Synthesize key events to generate a press and release of key id count times. If possible match the given modifier mask.

Implements ClientProxy.

Reimplemented in ClientProxy1_1, and ClientProxy1_4.

◆ keyUp()

void ClientProxy1_0::keyUp	(	KeyID	id,
		KeyModifierMask	,
		KeyButton	)

overridevirtual

Notify of key release.

Synthesize key events to generate a release of key id. If possible match the given modifier mask.

Implements ClientProxy.

Reimplemented in ClientProxy1_1, and ClientProxy1_4.

◆ leave()

bool ClientProxy1_0::leave ( )

overridevirtual

Leave screen.

Leave the screen. Return false iff the user may not leave the client's screen (because, for example, a button is down).

Implements ClientProxy.

◆ mouseDown()

void ClientProxy1_0::mouseDown ( ButtonID id )

overridevirtual

Notify of mouse press.

Synthesize mouse events to generate a press of mouse button id.

Implements ClientProxy.

◆ mouseMove()

void ClientProxy1_0::mouseMove	(	int32_t	xAbs,
		int32_t	yAbs )

overridevirtual

Notify of mouse motion.

Synthesize mouse events to generate mouse motion to the absolute screen position xAbs,yAbs.

Implements ClientProxy.

◆ mouseRelativeMove()

void ClientProxy1_0::mouseRelativeMove	(	int32_t	xRel,
		int32_t	yRel )

overridevirtual

Notify of mouse motion.

Synthesize mouse events to generate mouse motion by the relative amount xRel,yRel.

Implements ClientProxy.

Reimplemented in ClientProxy1_2.

◆ mouseUp()

void ClientProxy1_0::mouseUp ( ButtonID id )

overridevirtual

Notify of mouse release.

Synthesize mouse events to generate a release of mouse button id.

Implements ClientProxy.

◆ mouseWheel()

void ClientProxy1_0::mouseWheel	(	int32_t	xDelta,
		int32_t	yDelta )

overridevirtual

Notify of mouse wheel motion.

Synthesize mouse events to generate mouse wheel motion of xDelta and yDelta. Deltas are positive for motion away from the user or to the right and negative for motion towards the user or to the left. Each wheel click should generate a delta of +/-120.

Implements ClientProxy.

Reimplemented in ClientProxy1_3.

◆ operator=() [1/2]

ClientProxy1_0 & ClientProxy1_0::operator= ( ClientProxy1_0 && )

delete

◆ operator=() [2/2]

ClientProxy1_0 & ClientProxy1_0::operator= ( ClientProxy1_0 const & )

delete

◆ parseHandshakeMessage()

bool ClientProxy1_0::parseHandshakeMessage ( const uint8_t * code )

protectedvirtual

◆ parseMessage()

bool ClientProxy1_0::parseMessage ( const uint8_t * code )

protectedvirtual

Reimplemented in ClientProxy1_3, and ClientProxy1_5.

◆ recvClipboard()

bool ClientProxy1_0::recvClipboard ( )

protectedvirtual

Reimplemented in ClientProxy1_6.

◆ removeHeartbeatTimer()

void ClientProxy1_0::removeHeartbeatTimer ( )

protectedvirtual

Reimplemented in ClientProxy1_3.

◆ resetHeartbeatRate()

void ClientProxy1_0::resetHeartbeatRate ( )

protectedvirtual

Reimplemented in ClientProxy1_3.

◆ resetHeartbeatTimer()

void ClientProxy1_0::resetHeartbeatTimer ( )

protectedvirtual

Reimplemented in ClientProxy1_3.

◆ resetOptions()

void ClientProxy1_0::resetOptions ( )

overridevirtual

Notify of options changes.

Reset all options to their default values.

Implements ClientProxy.

◆ screensaver()

void ClientProxy1_0::screensaver ( bool activate )

overridevirtual

Notify of screen saver change.

Implements ClientProxy.

◆ secureInputNotification()

void ClientProxy1_0::secureInputNotification ( const std::string & app ) const

overridevirtual

Implements ClientProxy.

Reimplemented in ClientProxy1_7.

◆ sendDragInfo()

void ClientProxy1_0::sendDragInfo	(	uint32_t	fileCount,
		const char *	info,
		size_t	size )

overridevirtual

Implements ClientProxy.

Reimplemented in ClientProxy1_5.

◆ setClipboard()

void ClientProxy1_0::setClipboard	(	ClipboardID	,
		const IClipboard *	)

overridevirtual

Set clipboard.

Update the client's clipboard. This implies that the client's clipboard is now up to date. If the client's clipboard was already known to be up to date then this may do nothing. data has marshalled clipboard data.

Implements ClientProxy.

Reimplemented in ClientProxy1_6.

◆ setClipboardDirty()

void ClientProxy1_0::setClipboardDirty	(	ClipboardID	,
		bool	dirty )

overridevirtual

Mark clipboard dirty.

Mark the client's clipboard as dirty (out of date) or clean (up to date).

Implements ClientProxy.

◆ setHeartbeatRate()

void ClientProxy1_0::setHeartbeatRate	(	double	rate,
		double	alarm )

protectedvirtual

Reimplemented in ClientProxy1_3.

◆ setOptions()

void ClientProxy1_0::setOptions ( const OptionsList & options )

overridevirtual

Notify of options changes.

Set options to given values. Ignore unknown options and don't modify our options that aren't given in options.

Implements ClientProxy.

Member Data Documentation

◆ m_clipboard

ClientClipboard ClientProxy1_0::m_clipboard[kClipboardEnd]

protected

The documentation for this class was generated from the following files:

src/lib/server/ClientProxy1_0.h
src/lib/server/ClientProxy1_0.cpp

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ClientProxy1_0() [1/3]

◆ ClientProxy1_0() [2/3]

◆ ClientProxy1_0() [3/3]

◆ ~ClientProxy1_0()

Member Function Documentation

◆ addHeartbeatTimer()

◆ enter()

◆ fileChunkSending()

◆ getClipboard()

◆ getCursorPos()

◆ getSecureInputApp()

◆ getShape()

◆ grabClipboard()

◆ keyDown()

◆ keyRepeat()

◆ keyUp()

◆ leave()

◆ mouseDown()

◆ mouseMove()

◆ mouseRelativeMove()

◆ mouseUp()

◆ mouseWheel()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ parseHandshakeMessage()

◆ parseMessage()

◆ recvClipboard()

◆ removeHeartbeatTimer()

◆ resetHeartbeatRate()

◆ resetHeartbeatTimer()

◆ resetOptions()

◆ screensaver()

◆ secureInputNotification()

◆ sendDragInfo()

◆ setClipboard()

◆ setClipboardDirty()

◆ setHeartbeatRate()

◆ setOptions()

Member Data Documentation

◆ m_clipboard
