ClientProxy1_3 Class Reference

Proxy for client implementing protocol version 1.3. More...

#include <ClientProxy1_3.h>

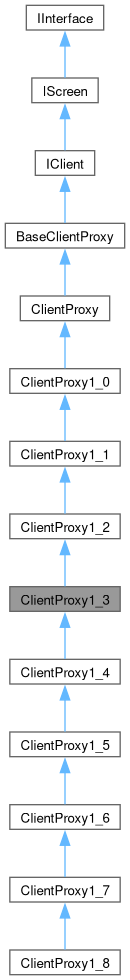

Inheritance diagram for ClientProxy1_3:

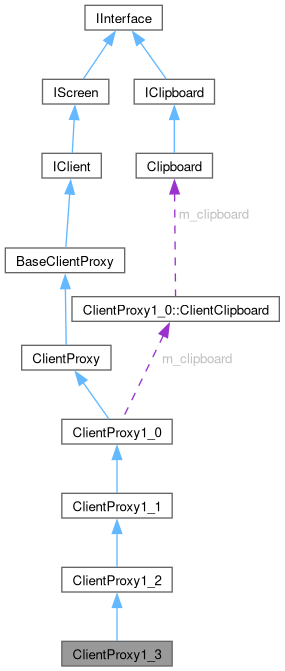

Collaboration diagram for ClientProxy1_3:

Public Member Functions
	ClientProxy1_3 (const std::string &name, deskflow::IStream *adoptedStream, IEventQueue *events)
	ClientProxy1_3 (ClientProxy1_3 const &)=delete
	ClientProxy1_3 (ClientProxy1_3 &&)=delete
	~ClientProxy1_3 () override
ClientProxy1_3 &	operator= (ClientProxy1_3 const &)=delete
ClientProxy1_3 &	operator= (ClientProxy1_3 &&)=delete
void	mouseWheel (int32_t xDelta, int32_t yDelta) override
	Notify of mouse wheel motion.
Public Member Functions inherited from ClientProxy1_2
	ClientProxy1_2 (const std::string &name, deskflow::IStream *adoptedStream, IEventQueue *events)
	~ClientProxy1_2 () override=default
void	mouseRelativeMove (int32_t xRel, int32_t yRel) override
	Notify of mouse motion.
Public Member Functions inherited from ClientProxy1_1
	ClientProxy1_1 (const std::string &name, deskflow::IStream *adoptedStream, IEventQueue *events)
	~ClientProxy1_1 () override=default
void	keyDown (KeyID, KeyModifierMask, KeyButton, const std::string &) override
	Notify of key press.
void	keyRepeat (KeyID, KeyModifierMask, int32_t count, KeyButton, const std::string &) override
	Notify of key repeat.
void	keyUp (KeyID, KeyModifierMask, KeyButton) override
	Notify of key release.
Public Member Functions inherited from ClientProxy1_0
	ClientProxy1_0 (const std::string &name, deskflow::IStream *adoptedStream, IEventQueue *events)
	ClientProxy1_0 (ClientProxy1_0 const &)=delete
	ClientProxy1_0 (ClientProxy1_0 &&)=delete
	~ClientProxy1_0 () override
ClientProxy1_0 &	operator= (ClientProxy1_0 const &)=delete
ClientProxy1_0 &	operator= (ClientProxy1_0 &&)=delete
bool	getClipboard (ClipboardID id, IClipboard *) const override
	Get clipboard.
void	getShape (int32_t &x, int32_t &y, int32_t &width, int32_t &height) const override
	Get screen shape.
void	getCursorPos (int32_t &x, int32_t &y) const override
	Get cursor position.
void	enter (int32_t xAbs, int32_t yAbs, uint32_t seqNum, KeyModifierMask mask, bool forScreensaver) override
	Enter screen.
bool	leave () override
	Leave screen.
void	setClipboard (ClipboardID, const IClipboard *) override
	Set clipboard.
void	grabClipboard (ClipboardID) override
	Grab clipboard.
void	setClipboardDirty (ClipboardID, bool) override
	Mark clipboard dirty.
void	mouseDown (ButtonID) override
	Notify of mouse press.
void	mouseUp (ButtonID) override
	Notify of mouse release.
void	mouseMove (int32_t xAbs, int32_t yAbs) override
	Notify of mouse motion.
void	screensaver (bool activate) override
	Notify of screen saver change.
void	resetOptions () override
	Notify of options changes.
void	setOptions (const OptionsList &options) override
	Notify of options changes.
void	sendDragInfo (uint32_t fileCount, const char *info, size_t size) override
void	fileChunkSending (uint8_t mark, char *data, size_t dataSize) override
std::string	getSecureInputApp () const override
void	secureInputNotification (const std::string &app) const override
Public Member Functions inherited from ClientProxy
	ClientProxy (const std::string &name, deskflow::IStream *adoptedStream)
	ClientProxy (ClientProxy const &)=delete
	ClientProxy (ClientProxy &&)=delete
	~ClientProxy () override
ClientProxy &	operator= (ClientProxy const &)=delete
ClientProxy &	operator= (ClientProxy &&)=delete
void	close (const char *msg) const
	Disconnect.
deskflow::IStream *	getStream () const override
	Get stream.
void *	getEventTarget () const override
	Get event target.
Public Member Functions inherited from BaseClientProxy
	BaseClientProxy (const std::string &name)
	~BaseClientProxy () override=default
void	setJumpCursorPos (int32_t x, int32_t y)
	Save cursor position.
void	getJumpCursorPos (int32_t &x, int32_t &y) const
	Get cursor position.
virtual bool	isPrimary () const
	Get cursor position.
std::string	getName () const override
	Get client name.
Public Member Functions inherited from IClient
Public Member Functions inherited from IScreen
Public Member Functions inherited from IInterface
virtual	~IInterface ()=default
	Interface destructor does nothing.

Protected Member Functions
bool	parseMessage (const uint8_t *code) override
void	resetHeartbeatRate () override
void	setHeartbeatRate (double rate, double alarm) override
void	resetHeartbeatTimer () override
void	addHeartbeatTimer () override
void	removeHeartbeatTimer () override
virtual void	keepAlive ()
Protected Member Functions inherited from ClientProxy1_0
virtual bool	parseHandshakeMessage (const uint8_t *code)
virtual bool	recvClipboard ()

Additional Inherited Members
Protected Attributes inherited from ClientProxy1_0
ClientClipboard	m_clipboard [kClipboardEnd]

Detailed Description

Proxy for client implementing protocol version 1.3.

Constructor & Destructor Documentation

ClientProxy1_3() [1/3]

ClientProxy1_3::ClientProxy1_3	(	const std::string &	name,
		deskflow::IStream *	adoptedStream,
		IEventQueue *	events )

ClientProxy1_3() [2/3]

ClientProxy1_3::ClientProxy1_3 ( ClientProxy1_3 const & )

delete

ClientProxy1_3() [3/3]

ClientProxy1_3::ClientProxy1_3 ( ClientProxy1_3 && )

delete

~ClientProxy1_3()

ClientProxy1_3::~ClientProxy1_3 ( )

override

Member Function Documentation

addHeartbeatTimer()

void ClientProxy1_3::addHeartbeatTimer ( )

overrideprotectedvirtual

Reimplemented from ClientProxy1_0.

keepAlive()

void ClientProxy1_3::keepAlive ( )

protectedvirtual

Reimplemented in ClientProxy1_4.

mouseWheel()

void ClientProxy1_3::mouseWheel ( int32_t xDelta, int32_t yDelta )

overridevirtual

Notify of mouse wheel motion.

Synthesize mouse events to generate mouse wheel motion of xDelta and yDelta. Deltas are positive for motion away from the user or to the right and negative for motion towards the user or to the left. Each wheel click should generate a delta of +/-120.

Reimplemented from ClientProxy1_0.

operator=() [1/2]

ClientProxy1_3 & ClientProxy1_3::operator= ( ClientProxy1_3 && )

delete

operator=() [2/2]

ClientProxy1_3 & ClientProxy1_3::operator= ( ClientProxy1_3 const & )

delete

parseMessage()

bool ClientProxy1_3::parseMessage ( const uint8_t * code )

overrideprotectedvirtual

Reimplemented from ClientProxy1_0.

Reimplemented in ClientProxy1_5.

removeHeartbeatTimer()

void ClientProxy1_3::removeHeartbeatTimer ( )

overrideprotectedvirtual

Reimplemented from ClientProxy1_0.

resetHeartbeatRate()

void ClientProxy1_3::resetHeartbeatRate ( )

overrideprotectedvirtual

Reimplemented from ClientProxy1_0.

resetHeartbeatTimer()

void ClientProxy1_3::resetHeartbeatTimer ( )

overrideprotectedvirtual

Reimplemented from ClientProxy1_0.

setHeartbeatRate()

void ClientProxy1_3::setHeartbeatRate ( double rate, double alarm )

overrideprotectedvirtual

Reimplemented from ClientProxy1_0.

---

The documentation for this class was generated from the following files:

• src/lib/server/ClientProxy1_3.h
• src/lib/server/ClientProxy1_3.cpp
